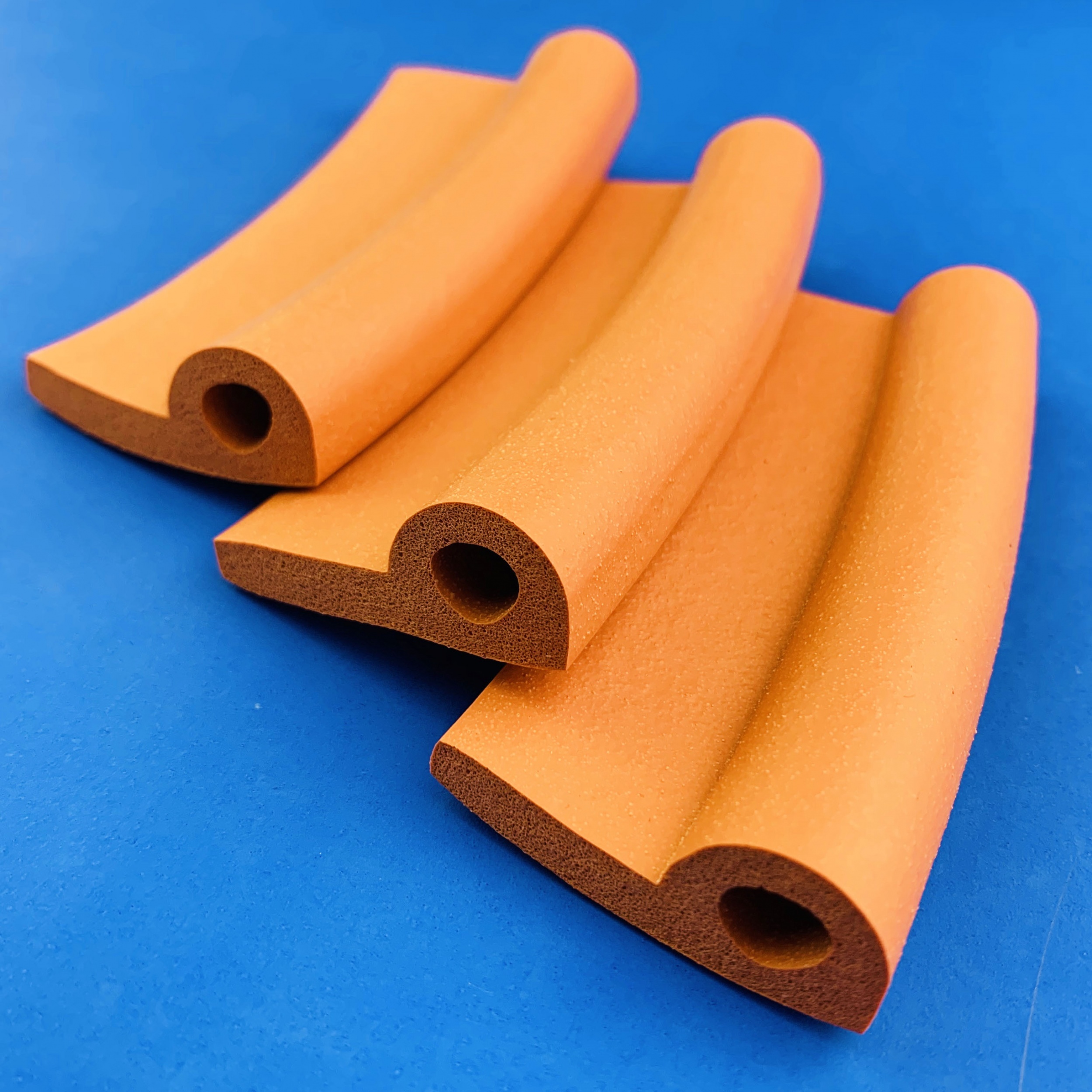

Silicone Foam Hose Strips: The Ultimate Thermal Insulation Solution for Extreme Environments

Revolutionizing Thermal Management: Why Global Engineers Choose Yutian's Silicone Foam Solutions

As a ISO 9001 & IATF 16949 certified manufacturer with 18 years of polymer innovation, Yutian Silicone redefines thermal insulation standards across 35+ countries. Our silicone foam hose strips combine aerospace-grade performance with industrial durability.

1. Engineering Excellence: Core Advantages of Yutian Silicone Foam

Material Innovation:

- **Temperature Mastery**: -40°C to +250°C continuous operation (300°C peak resistance)

- **Flame Resistance**: UL 94 V-0 certified, low smoke density (<15%)

- **Custom Formulations**: Conductive, EMI-shielding, or food-grade (FDA 21 CFR 177.2600) options

**Performance Benchmarks**:

| Property               | Yutian Silicone Foam | Industry Average |

|------------------------|----------------------|-------------------|

| Thermal Conductivity    | 0.18 W/m·K           | 0.25 W/m·K        |

| Compression Set         | ≤10% (22h @ 150°C)   | 20-30%            |

| Service Life            | 10-15 years          | 5-8 years         |

**Case Study**: Reduced energy loss by 37% for a German solar thermal plant using our custom-profile foam strips.

2. Industry-Specific Applications

2.1 Electric Vehicle Battery Insulation

- **Challenge**: Prevent thermal runaway in 800V battery packs

- **Solution**:

  - Class 0 fire rating (GB/T 5169.16-2017)

  - 3x vibration damping vs rubber alternatives

**2.2 Aerospace Fluid Line Protection**

- **Mil-Spec Compliance**: MIL-STD-810G altitude simulation tested

- **Feature**: Outgas<1% (ASTM E595) for vacuum environments

**2.3 Pharmaceutical Cleanroom Systems**

- **Certification**: USP Class VI biocompatibility

- **Benefit**: Microbial growth resistance (ASTM G21)

3. Material Comparison: Data-Driven Selection

Why engineers prefer silicone foam over alternatives

| Material               | Max Temp   | Flexibility | Moisture Resistance | UV Stability |

|------------------------------------------------------------------------------------------------------------

| **Silicone Foam**| +250°C     | ★★★★★   | ★★★★★            | ★★★★★        |

| EPDM                  | +150°C     | ★★★☆☆   | ★★★★☆            | ★★★☆☆        |

| Fiberglass            | +480°C     | ★☆☆☆☆   | ★★☆☆☆            | ★★★☆☆        |

| Polyurethane       | +120°C     | ★★★★☆   | ★★☆☆☆             | ★☆☆☆☆        |

*Key*: ★★★★★ = Excellent | ★☆☆☆☆ = Poor

4. Customization Guide: 5 Critical Selection Factors

**4.1 Profile Engineering**

- **Standard Shapes**: Round, square, D-profile, hollow core

- **Custom Tooling**: 48-hour rapid prototyping for complex geometries

**4.2 Adhesive System Options**

| Type              | Temp Resistance | Peel Strength | Best For            |

|-------------------|-----------------|---------------|---------------------|

| Acrylic PSA       | 150°C           | 25 N/cm       | Flat surfaces       |

| Silicone Adhesive | 250°C           | 15 N/cm       | Curved pipelines    |

| Hook-and-Loop     | 180°C           | Reusable      | Temporary insulation|

4.3 Density Optimization

- Low (150kg/m³): Flexible wrapping for irregular surfaces

- High (350kg/m³): Structural support for heavy industrial use

5. Yutian's Technical Edge

Advanced Manufacturing:

Continuous Vulcanization: 20m/min production speed

Microcellular Foaming: Consistent 0.5mm±0.05 cell structure

Quality Assurance:

- 100% inline thickness monitoring (Laser Micrometer)

- Batch traceability via QR code system

6. FAQ: Expert Insights

Q: Can your foam strips handle cryogenic LNG applications?

A: Yes! Our specialty formulation maintains flexibility at -196°C (LN2 compatibility tested).

Q: Do you provide fire resistance certificates?

A: We supply complete documentation – IMO FTP Code, EN 45545-2, and NFPA 274 included.

Q: What's the MOQ for custom profiles?

A: Prototype orders start at 100m – ideal for R&D validation.
