Innovative Medical Technology: Understanding Silicone Heating Tubes for Infusion Therapy

In the field of medical care, ensuring patient comfort during treatments such as transfusions and infusions is of paramount importance. A silicone heating tube represents a significant advancement in medical technology, designed to warm intravenous fluids, thereby enhancing patient comfort, particularly in colder climates.

Essential Features of the Silicone Heating Tube

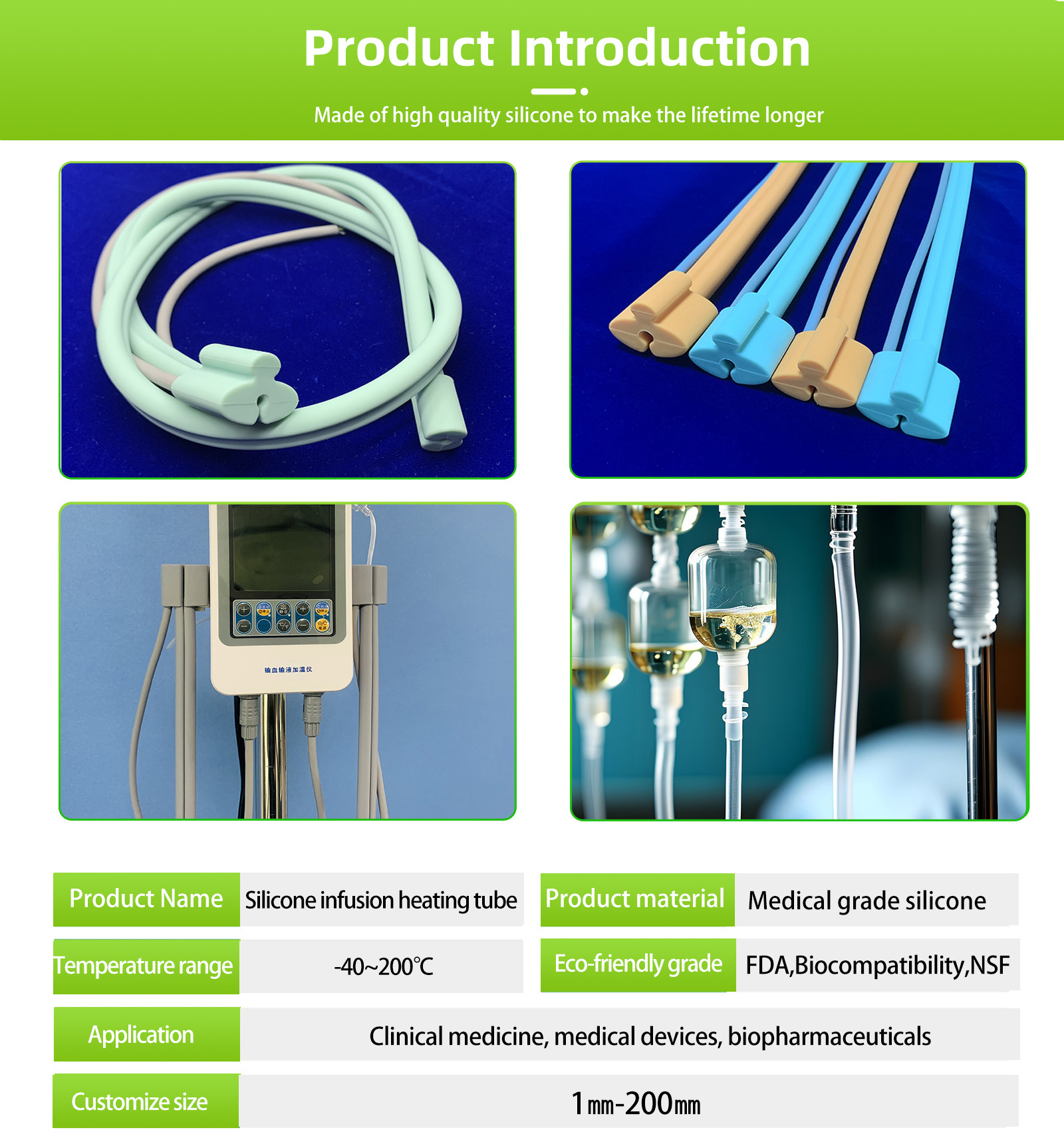

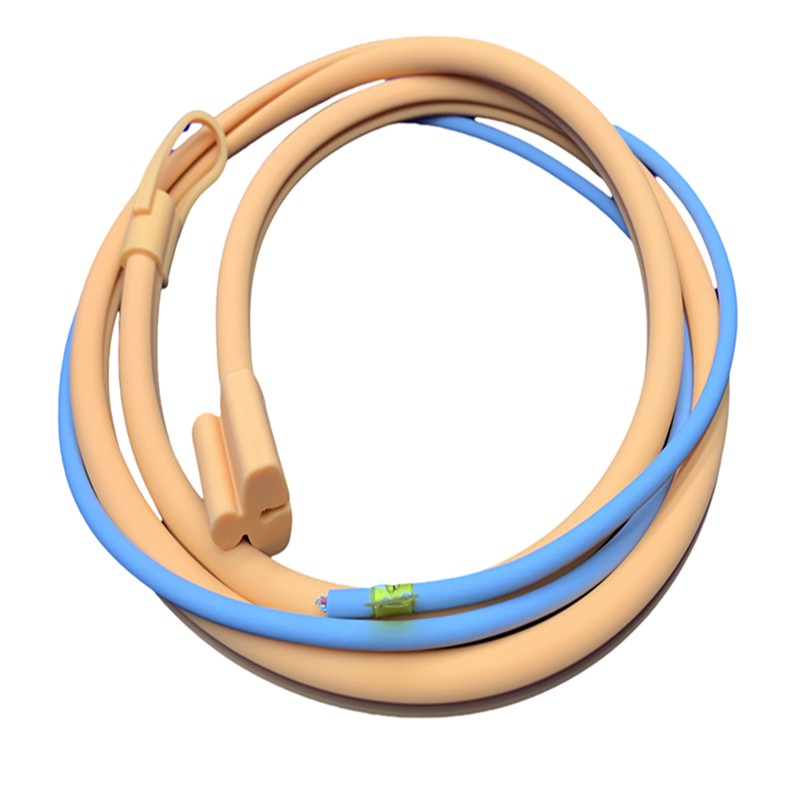

The silicone heating tube is an open-ended silicone device specifically designed for use in medical infusion and transfusion heating systems. Constructed from food-grade medical silicone, this tube is both durable and safe, making it suitable for demanding medical environments.

Technical Specifications:

- Inner Diameter Options: 3mm, 5mm, and 6-7mm, allowing customization based on the diameter of existing infusion tubes.

- Length Options: Available in 600mm, 900mm, 1000mm, 1200mm, and 1400mm, providing flexibility to suit different patient needs.

- Heating Wire Resistance Levels: Offered at 6.3Ω/m, 7.5Ω/m, and 8.3Ω/m, catering to varied heating requirements.

- Sensor Types: Two sensor options are available, 10K and 50K, typically installed 100mm from the smaller end of the tube.

Design and Functionality

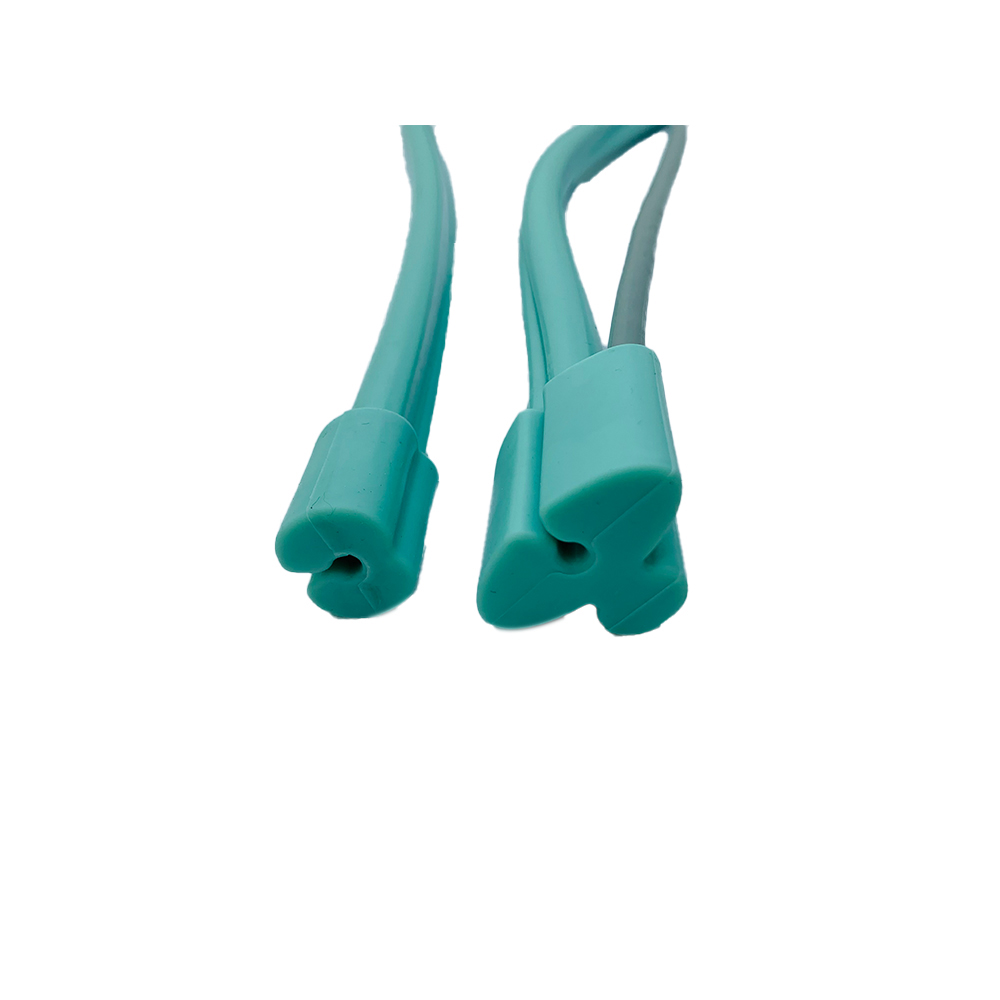

The core design principle of the silicone heating tube is to increase the temperature of the fluids before they enter the body, alleviating the discomfort associated with cold infusions. The tube's design includes an opening that allows it to envelop an infusion line. Inside the tube's walls are four heating wires that, once connected to a heating device, elevate the temperature of the fluid within the infusion tube.

Temperature control is a critical component of this device. The integrated sensors continuously monitor the fluid's temperature, ensuring it remains within safe, human-compatible ranges. This feedback loop is crucial to prevent overheating and maintain patient safety.

Safety and Durability

Safety is a top priority in the construction of the silicone heating tube. The product can withstand high-pressure steam sterilization at temperatures up to 130°C, making it resistant to common sterilization practices used in medical facilities. Additionally, the silicone material exhibits resistance to weak acids and alkalis, contributing to its longevity and reliability.

To further enhance safety, the silicone heating tube can be equipped with a built-in fuse in addition to the fuse present in the heating device. This feature is designed to halt the heating process if the temperature surpasses a predetermined threshold, effectively preventing any risk of overheating.

Operating Range and Environmental Conditions

The silicone heating tube operates at a voltage range of 0 to 24 volts, providing flexibility for integration with various heating devices used in medical settings. This wide voltage range ensures compatibility with a broad spectrum of medical equipment, facilitating seamless integration into existing systems.

Enhancing Patient Comfort and Safety

In medical treatments where comfort can significantly impact patient experiences, the silicone heating tube offers an optimal solution. By ensuring that fluids are warmed prior to administration, this device not only reduces discomfort but also exemplifies the potential of engineered solutions to improve healthcare outcomes.

Conclusion

For healthcare providers seeking to enhance patient comfort during infusion therapies, the silicone heating tube represents a reliable and technologically advanced option. Its thoughtful design and rigorous safety features ensure that it meets the high standards required in medical environments.

By focusing on product innovations like the silicone heating tube, we can continue to improve the quality of care and patient satisfaction in medical treatments.
