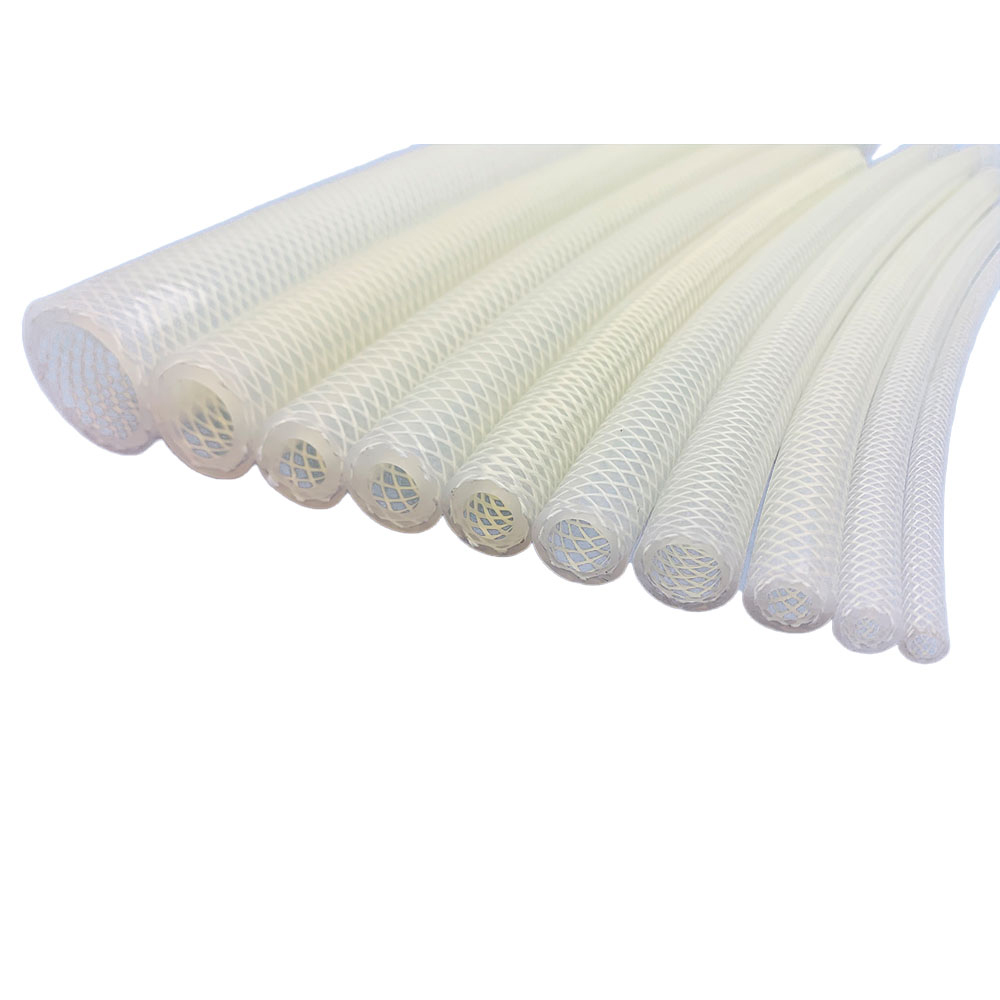

High Temperature Braided Silicone Hose

High temperature braided silicone hose: a platinum-cured silicone bore, a high-temperature braid and a silicone jacket bonded into one wall. Rated −40 °C to +200 °C continuous, it stays flexible where a rubber hose hardens. Burst 1.18–3.73 MPa by bore, ID 3–31.75 mm published.

    Product Features

    High temperature braided silicone hose: platinum-cured silicone bore, high-temperature braid and silicone jacket, bonded into one wall
    −40 °C to +200 °C continuous; stays flexible and clear where a rubber hose has hardened and cracked
    Polyester braid as standard, aramid available for the hotter end of the range; burst 1.18–3.73 MPa by bore
    Working pressure quoted per project: burst divided by your safety factor, and derated for the temperature of the line
    70 Shore A bore, 60 Shore A jacket, ≥8.6 MPa tensile, ≥360% elongation, ≥32 kN/m tear
    Eleven published sections ID 3–31.75 mm with burst figures and bend radii; other bores to order up to 50 mm

    Application

    Hot air and heat tunnels
    Oven and heat-tunnel air lines that stay flexible after heat cycles.
    Engine bay and heater lines
    Coolant and heater runs supplied to vehicle parts makers.
    Food and beverage
    CIP and hot-fill lines with no rubber taste and no plasticiser.
    Pharmaceutical and laboratory
    Hot media and clean transfer with a non-shedding bore.
    Compressors and equipment
    Hot air and coolant runs cut to a fixed length.
    Steam and washdown
    Short flexible runs on equipment cleaned at temperature.

  • Parameters

    Product Features

    High temperature braided silicone hose: platinum-cured silicone bore, high-temperature braid and silicone jacket, bonded into one wall
    −40 °C to +200 °C continuous; stays flexible and clear where a rubber hose has hardened and cracked
    Polyester braid as standard, aramid available for the hotter end of the range; burst 1.18–3.73 MPa by bore
    Working pressure quoted per project: burst divided by your safety factor, and derated for the temperature of the line
    70 Shore A bore, 60 Shore A jacket, ≥8.6 MPa tensile, ≥360% elongation, ≥32 kN/m tear
    Eleven published sections ID 3–31.75 mm with burst figures and bend radii; other bores to order up to 50 mm

    Application

    Hot air and heat tunnels
    Oven and heat-tunnel air lines that stay flexible after heat cycles.
    Engine bay and heater lines
    Coolant and heater runs supplied to vehicle parts makers.
    Food and beverage
    CIP and hot-fill lines with no rubber taste and no plasticiser.
    Pharmaceutical and laboratory
    Hot media and clean transfer with a non-shedding bore.
    Compressors and equipment
    Hot air and coolant runs cut to a fixed length.
    Steam and washdown
    Short flexible runs on equipment cleaned at temperature.
Yutian · high temperature braided silicone hose · platinum-cured

A braided silicone hose that stays flexible and clean at high temperature

A high temperature braided silicone hose is a three-layer hose: a platinum-cured silicone bore, a high-temperature braid and an outer silicone jacket, bonded into one wall. It holds its bore and stays flexible from −40 °C to +200 °C continuously, where a rubber hose has already hardened, and the braid keeps it round under pressure at that temperature.

−40 °C to +200 °C continuousPolyester or aramid braidBurst 1.18–3.73 MPaID 3–31.75 mm publishedPlatinum-cured bore

What “high temperature” means for a braided hose

The temperature a hose survives is set by two things: the silicone compound and the braid. Silicone is the reason a hose can run hot at all. An EPDM or nitrile rubber hose of the same bore is usually finished above roughly 150 °C: it hardens, then cracks at the ends. A platinum-cured silicone hose keeps its flexibility and its transparency to +200 °C continuous, and it does not shed plasticiser or peroxide residue into the line.

The braid decides what happens to the bore at that temperature. Silicone softens as it heats, so an unreinforced tube balloons and then kinks on a bend. The braid carries the hoop load instead, so the bore stays round while the silicone stays flexible: the same reason the braided build is used for pressure and vacuum.

Where that leaves the rating: our braided silicone hose is published at −40 °C to +200 °C continuous. If your line runs hotter than that, tell us the duty and we will say whether the compound or the braid has to change — we will not quote a number the hose cannot hold.

What the hose is made of

Three layers, bonded in one extrusion and braiding run. The bore is a platinum-cured, high-transparency silicone tube; the middle is a high-temperature braid; the jacket is silicone again, so the braid is protected from abrasion and from steam or washdown. Nothing in the build is rubber.

Nominal hardness is 70 Shore A on the bore and 60 Shore A on the jacket. Tensile strength is ≥ 8.6 MPa, elongation at break ≥ 360% and tear strength ≥ 32 kN/m on the compound sheet, measured on the silicone rather than on the finished hose. The construction is described in more detail in how the three-layer polyester braid is built.

Not for human implantation.

Temperature and pressure together

A hose is rated for a temperature and a pressure at the same time, not for each on its own. The burst figures on this page are measured at room temperature on a new hose; a hot line loses part of that margin, and how much depends on the fluid, the duty cycle and the safety factor your process requires. That is why we quote working pressure per project instead of publishing one headline number.

The practical rule: choose the bore and the braid from the temperature first, then set the working pressure from the burst figure and your safety factor. If the line is both hot and under pressure, send both numbers and we will quote the construction that fits, rather than the one that merely survives.

Sizes, burst figures and bend radii

Eleven sections, each with a published burst figure and bend radius. The small bores take the most pressure — ID 3 mm bursts above 3.73 MPa — and the figure tapers to 1.18 MPa at ID 31.75 mm, because the wall and braid carry more load on a small diameter.

ModelID (mm)OD (mm)Wall (mm)Burst (MPa)Bend radius (mm)
HJBX-0013 ± 0.58 ± 0.52.5≥ 3.7335
HJBX-0024 ± 0.59 ± 0.52.5≥ 3.7335
HJBX-0035 ± 0.511 ± 0.53≥ 3.7335
HJBX-0046.35 ± 0.512 ± 0.52.825≥ 3.4335
HJBX-0057.93 ± 0.515 ± 0.53.535≥ 3.4350
HJBX-0069.52 ± 0.517 ± 0.53.74≥ 3.4350
HJBX-00712.7 ± 0.722 ± 0.74.65≥ 2.4570
HJBX-00815.87 ± 0.725 ± 0.74.565≥ 2.2680
HJBX-00919.05 ± 0.731 ± 0.75.975≥ 1.77110
HJBX-01025.4 ± 0.738 ± 0.76.3≥ 1.18150
HJBX-01131.75 ± 0.746 ± 0.77.125≥ 1.18200

Burst values are minimums, given in MPa. Tolerances are ±0.5 mm up to ID 9.52 mm and ±0.7 mm above that. Each pack holds 1–15 m; cut lengths and coils are quoted per order.

Between the published sections, and up to ID 50 mm, the same three-layer construction is made to order: the bore is set at the die and the braid, so a size between models is a normal order rather than a tooling project. Above 50 mm the wall and the braid need a different set-up, and those lines are quoted per project.

Silicone braided hose or rubber hose for a hot line?

Both are flexible and both are used on hot water and hot air. The difference shows up at the top of the range: rubber is cheaper and perfectly serviceable on a line that stays under about 150 °C; silicone is the material you move to when the line runs hotter, when the hose has to stay flexible after a thousand heat cycles, or when the medium has to stay clean and odourless.

PropertyBraid reinforced silicone hoseRubber (EPDM) hose
Continuous temperature−40 to +200 °CAbout −40 to +120 °C in hot-water duty
Heat ageingStays flexible, no hardening at the endsHardens, then cracks at the ends
Bore at temperatureBraid holds the bore round when the silicone softensBalloons, then kinks
TransparencyClear bore, flow and contamination visibleUsually black
Taste and odourOdourless, no plasticiser to migrateRubber smell, plasticiser can migrate
Cold flexibilityFlexible down to −40 °CStiffens well before −40 °C

For a line that only needs pressure, the braid reinforced silicone hose page covers the pressure side in more detail; for steam duty there is the braided steam hose page.

Where a high temperature braided silicone hose is used

Hot air and heat tunnels

Oven and heat-tunnel air lines, where the hose has to stay flexible after repeated cycles.

Engine bay and heater lines

Coolant and heater runs on vehicle parts, supplied to the parts maker rather than sold as a finished automotive part.

Food and beverage processing

CIP and hot-fill lines where a rubber taste or a plasticiser would end up in the product.

Pharmaceutical and laboratory

Hot media and clean transfer where the bore has to stay non-shedding and documentable.

Compressors and industrial equipment

Hot air and coolant runs on machine builders' equipment, cut to a fixed length.

Steam and washdown

Short flexible runs on equipment that is cleaned at temperature; steam lines are quoted per duty, not from a headline number.

Three affiliated companies, one silicone chain

The hose is the last step of a chain we control from the compound up: raw material, compounding and the finished hose are handled by three affiliated companies, and Yutian ships the hose you buy.

Guilin Yutian New Materials

Silicone raw material and compound development, 28,000 m² site.

Dongguan Huahong Rubber and Plastic

Compounding, auxiliaries and batch control before extrusion.

Dongguan Yutian Silicone

Braiding, extrusion and finishing in a 6,800 m² plant.

What you can specify

Braid yarn

Polyester is the standard and carries the published burst figures. Aramid is available for the hotter end of the range, and cotton or nylon for other duties; all three are rated to the same −40 to +200 °C range.

Bore, wall and length

ID 3–50 mm to order, wall from 1.5 mm up, cut to length or coiled, with the ends bare for your own end treatment.

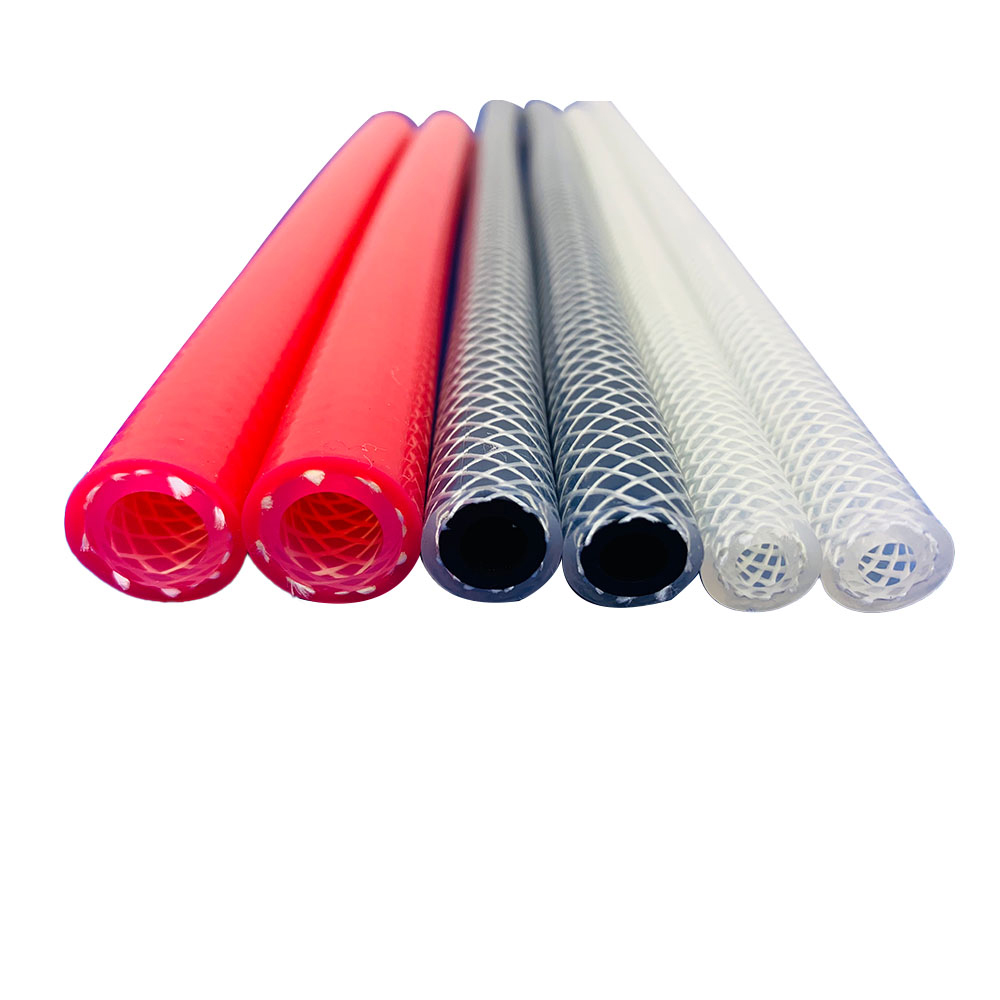

Colour

Transparent is standard. Opaque and tinted compounds follow a Pantone reference.

Higher pressure

Mesh-braided and steel-wire-braided constructions are available as custom options for higher pressure and larger bores, quoted per project with their own burst figure.

Lead time, samples and tooling

Published sections

Ship in 5 to 7 working days from stock compounds.

Samples

Stock samples leave in 3 days and are free; freight is paid by the buyer.

Custom construction

10 to 20 working days, depending on the yarn and the end treatment.

Tooling

A bore or construction outside the published sections is quoted per project, with tooling at USD 100–400 per product.

Materials, documents and limits

Material compliance: FDA 21 CFR 177.2600, NSF/ANSI 51, LFGB, REACH and RoHS. The plant runs an ISO 9001 and ISO 13485 quality system, and ISO 10993 biocompatibility reports are issued on request. Certificates travel with the shipment; third-party testing is arranged when your process needs a report rather than a certificate.

Limits worth stating up front. This is a silicone hose with a braid, not a fire sleeve and not a refractory part: it is rated to +200 °C continuous, and it is not for human implantation. Where a drawing calls for a higher temperature than that, the compound or the braid has to change and we will say so rather than quote the standard build.

The hose is extruded, braided and jacketed on 14 extrusion lines, 4 calendering lines and 7 moulding presses in a Class 100,000 cleanroom, at a monthly capacity of up to 8 million metres, since 2012.

Questions buyers ask before they specify

What is the maximum continuous temperature?

−40 °C to +200 °C continuous for the standard braided silicone hose, with polyester braid. The braid yarn can be changed to aramid for the hotter end of the range, but the published range stays the same. If your line runs above 200 °C, tell us the duty and we will say whether we can build for it.

Is the braid polyester or glass?

Polyester is the standard braid, which is what the published burst figures refer to. Aramid, cotton and nylon are available as alternatives; tell us the temperature and the fluid and we will say which yarn fits.

Does the hose stay flexible when hot?

Yes. Platinum-cured silicone keeps its flexibility up to +200 °C, and the braid keeps the bore round while the silicone softens. That combination is the reason the braided build is used where the line is both hot and under pressure.

What pressure can it take?

Burst is published per bore: 1.18–3.73 MPa. Working pressure is the burst figure divided by the safety factor your process requires, and it drops on a hot line, so we quote it per project.

Can it take vacuum?

Yes. The braid carries the load instead of the wall, so the bore can be drawn to full vacuum without collapsing, hot or cold.

Which sizes are published?

Eleven sections from ID 3 mm to 31.75 mm, each with a burst figure and bend radius. Bores between those sections, and up to 50 mm, are made to order; above 50 mm is quoted per project.

Is it food and pharmaceutical safe?

The materials comply with FDA 21 CFR 177.2600, NSF/ANSI 51, LFGB, REACH and RoHS. Finished-part reports, including ISO 10993 biocompatibility reports, are issued per project on request. The hose is not for human implantation.

What is the lead time and can I get a sample?

Published sections ship in 5 to 7 working days, and stock samples leave in 3 days. Custom constructions take 10 to 20 working days. Stock samples are free; freight is paid by the buyer.

Need a braided silicone hose for a hot line?

Send the temperature, the fluid and the bore. You get the construction, the burst figure and a sample date back — including a straight answer if the standard build is not the right one.
