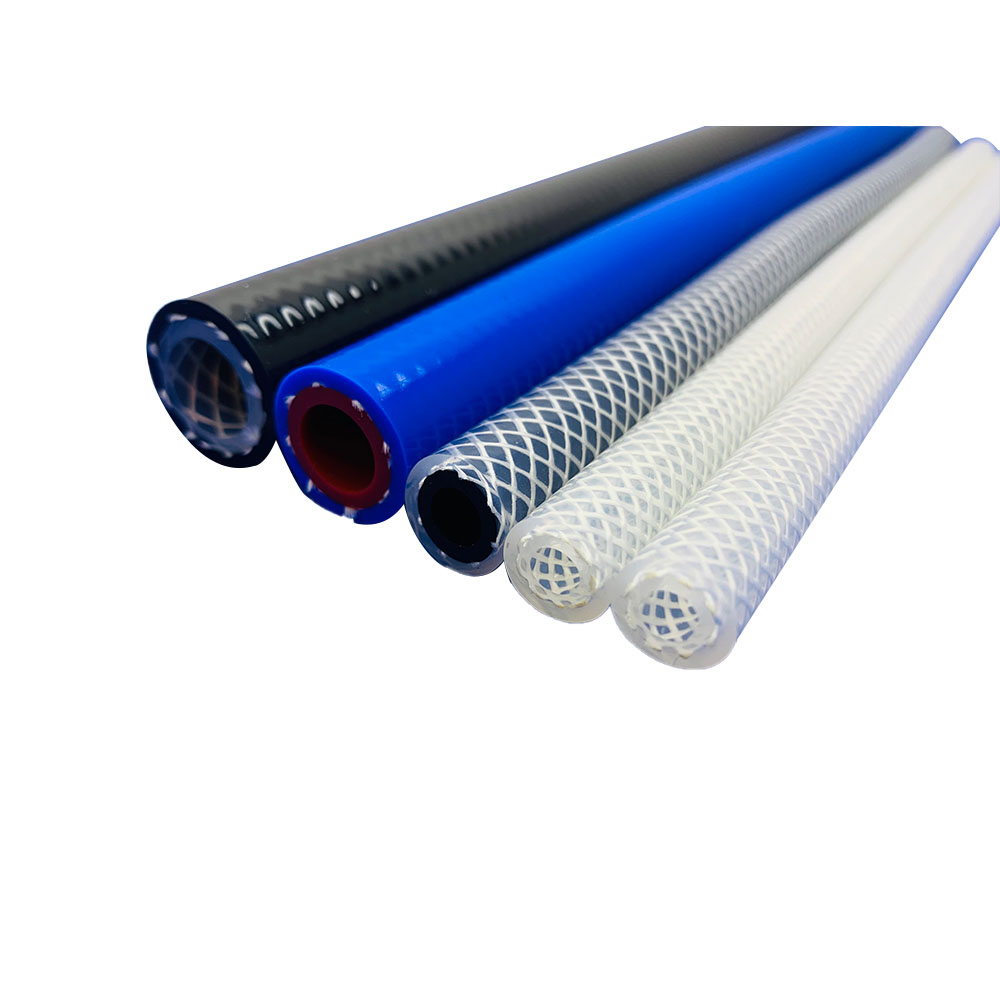

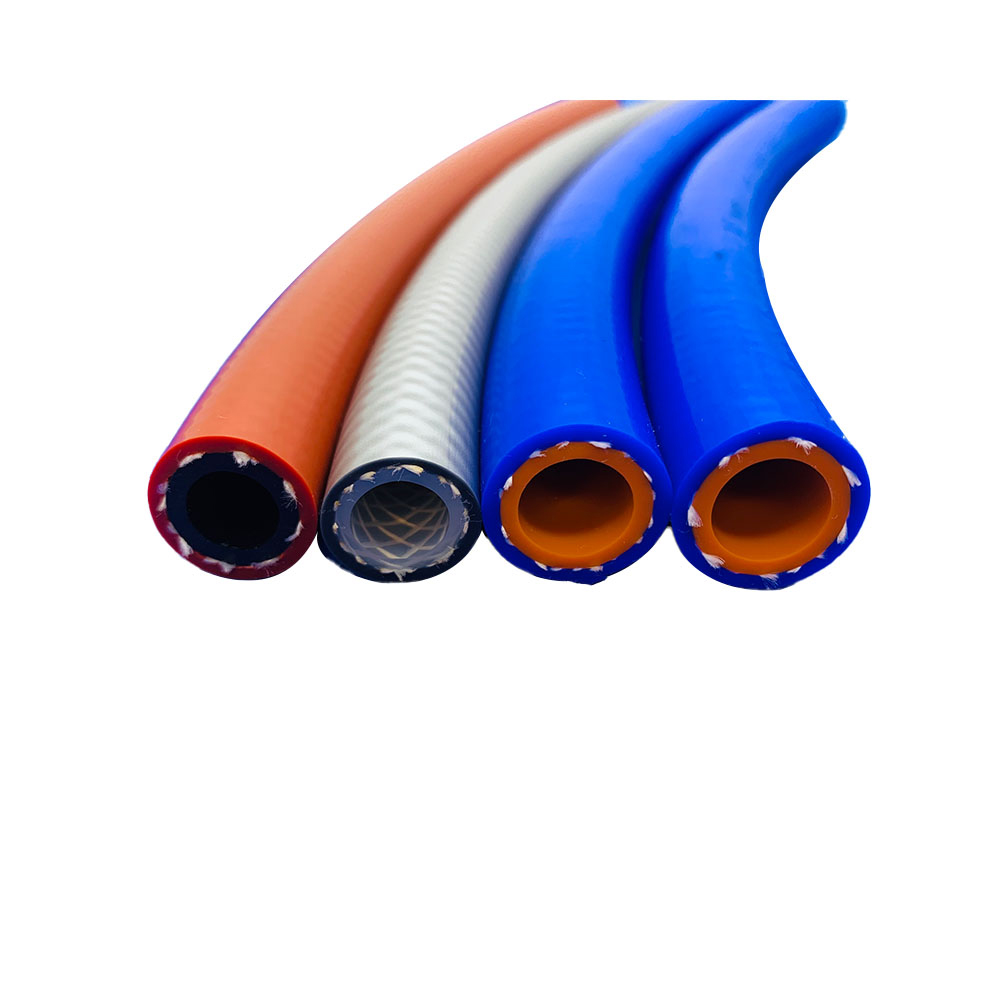

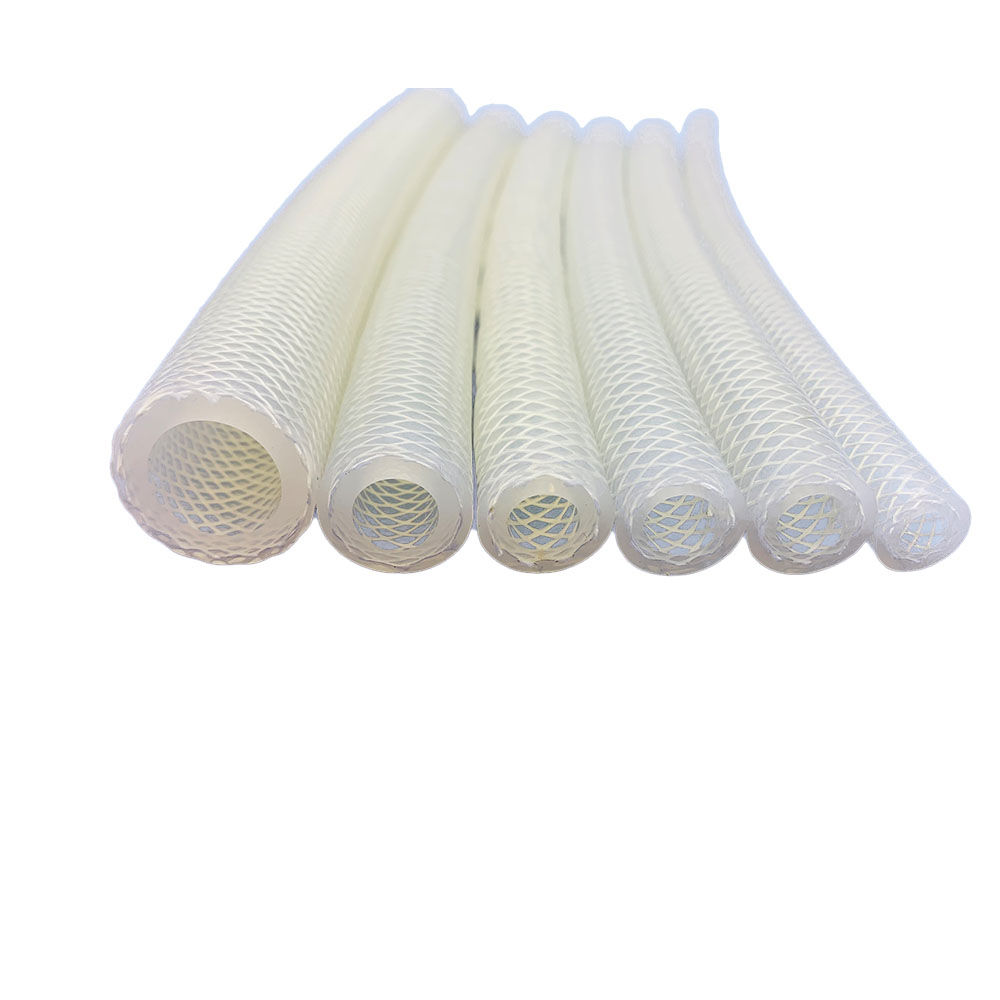

Braided silicone tube

Braided silicone hose: a platinum-cured silicone bore, a high-temperature polyester yarn braid and a silicone jacket bonded into one wall. Food and medical grade, FDA 21 CFR 177.2600, NSF/ANSI 51, LFGB, REACH and RoHS documentation. Burst 1.18–3.73 MPa by bore, full vacuum, −40 °C to +200 °C. Any bore and length to order.

    Product Features

    Food and medical grade: platinum-cured silicone, FDA 21 CFR 177.2600, NSF/ANSI 51, LFGB, REACH and RoHS documentation, ISO 10993 reports on request
    Pressure: polyester yarn braid, burst 1.18–3.73 MPa by bore, full vacuum without wall collapse, kink-resistant on a bend
    Construction: smooth silicone bore, high-temperature braid, silicone outer jacket; 70 Shore A inside, 60 Shore A outside
    Continuous −40 °C to +200 °C; tensile ≥8.6 MPa, elongation ≥360%, tear ≥32 kN/m
    Ageing and colour hold: clear wall stays clear, so flow and contamination stay visible
    Any bore, wall and length to order — a size change needs no mould; 11 published sections ship fastest

    Application

    Pharmaceutical transfer
    Media, buffer and product lines that are cleaned in place.
    Biotech and laboratory
    Peristaltic and low-pressure transfer where clarity matters.
    Food and beverage
    Milk, water, syrup and CIP lines on filling equipment.
    Cosmetics
    Cream, gel and fragrance transfer on filling machines.
    Industrial processing
    Coolant, solvent and pneumatic lines under vibration.
    Oxygen concentrators
    Medical device internal runs under vacuum.

  • Parameters

    Product Features

    Food and medical grade: platinum-cured silicone, FDA 21 CFR 177.2600, NSF/ANSI 51, LFGB, REACH and RoHS documentation, ISO 10993 reports on request
    Pressure: polyester yarn braid, burst 1.18–3.73 MPa by bore, full vacuum without wall collapse, kink-resistant on a bend
    Construction: smooth silicone bore, high-temperature braid, silicone outer jacket; 70 Shore A inside, 60 Shore A outside
    Continuous −40 °C to +200 °C; tensile ≥8.6 MPa, elongation ≥360%, tear ≥32 kN/m
    Ageing and colour hold: clear wall stays clear, so flow and contamination stay visible
    Any bore, wall and length to order — a size change needs no mould; 11 published sections ship fastest

    Application

    Pharmaceutical transfer
    Media, buffer and product lines that are cleaned in place.
    Biotech and laboratory
    Peristaltic and low-pressure transfer where clarity matters.
    Food and beverage
    Milk, water, syrup and CIP lines on filling equipment.
    Cosmetics
    Cream, gel and fragrance transfer on filling machines.
    Industrial processing
    Coolant, solvent and pneumatic lines under vibration.
    Oxygen concentrators
    Medical device internal runs under vacuum.
Yutian · food and medical grade · polyester braid

A braided silicone hose built for pressure, food and medical lines

A platinum-cured silicone bore, a high-temperature polyester yarn braid and an outer silicone jacket, bonded into one wall. The braid carries the pressure and the vacuum, so the bore stays round at full vacuum and does not kink on a bend, while the silicone keeps the hose food and medical grade from −40 °C to +200 °C. Bore, wall and length are set at the die and the braid, so a size outside our published sections is a normal order, not a tooling project.

Food and medical gradeBurst 1.18–3.73 MPaFull vacuum−40 °C to +200 °CAny bore to order

What a braided silicone hose is

Three layers, bonded in one extrusion and braiding sequence: a smooth silicone bore, the polyester yarn braid, and an outer silicone jacket that locks the braid in place. The bore stays smooth, so cleaning and draining behave the same as on an unbraided tube, while the braid stops the wall from expanding under pressure or collapsing under vacuum.

The compound is platinum-cured, high-transparency and high-tear medical and food grade silicone: nominal hardness 70 Shore A on the inner tube and 60 Shore A on the outer jacket, tensile strength ≥ 8.6 MPa, elongation at break ≥ 360%, tear ≥ 32 kN/m, continuous −40 °C to +200 °C. The braid is what turns a soft silicone wall into a pressure part, which is why the same bore behaves so differently with and without it; the construction is described in how the three-layer polyester braid is built.

Pressure, vacuum and kinking

The burst column in the table is a minimum value: a new hose is destroyed at that pressure or above, so it is not a working rating. Working pressure comes from the burst figure divided by the safety factor your process or standard requires, and we quote it per project rather than publishing one number for every bore. On the small bores the braid holds 3.73 MPa; it tapers to 1.18 MPa at ID 31.75 mm.

Under vacuum the braid carries the load instead of the wall, so the bore can be drawn to full vacuum without collapsing. The same braid resists kinking, which is why the bend radius ranges from 35 mm on the small sections to 200 mm at ID 31.75 mm. For lines that need more pressure than the polyester construction gives, the high-temperature braided range and the high-pressure braided range sit alongside this one; the vacuum and burst relationships are worked through in the burst and vacuum guide.

Food grade and medical grade, not just “silicone”

The compound is a platinum-cured, high-transparency, high-tear medical and food grade silicone. Material compliance: FDA 21 CFR 177.2600, NSF/ANSI 51, LFGB, REACH and RoHS. The ISO 10993 biocompatibility reports (cytotoxicity, skin sensitisation, skin irritation) are issued per part on request.

A platinum cure rather than a peroxide cure leaves the wall clear and free of peroxide residues, and the bore does not shed filler into the product stream. For a food or pharmaceutical line the bore is the working surface: it is smooth and non-porous, so it can be cleaned and drained in place rather than swabbed out. Not for human implantation.

Ageing, weather and yellowing

Silicone is chosen where a line has to keep working outdoors, through washdown and across repeated cleaning cycles. The compound is specified on colour hold as well as on tensile figures: clear hose that stays clear still shows the flow and any contamination through the wall after long service.

Ageing in silicone shows up first as a colour shift and a slow hardening, so the compound is selected for colour hold rather than for one number on a data sheet. Water, detergent and the usual CIP chemistry do not attack the wall. Where a line sees steam, strong solvents or concentrated acids, the duty temperature and the chemical decide the grade, and the hose is quoted for that duty rather than for a generic claim.

Any bore and length, not a fixed list

The hose is extruded, braided and jacketed, so the bore is set at the die and the braid rather than by a mould. A bore, wall or length outside the table below is a normal order: nothing is re-tooled for it, and the construction, the certifications and the temperature range stay the same.

The sections below are the ones we publish burst figures and bend radii for, which is why they are the quickest to quote and ship. Other bores follow the same three-layer build and are quoted per order.

ModelID (mm)OD (mm)Wall (mm)Burst (MPa)Bend radius (mm)
HJBX-0013 ± 0.58 ± 0.52.5≥ 3.7335
HJBX-0024 ± 0.59 ± 0.52.5≥ 3.7335
HJBX-0035 ± 0.511 ± 0.53≥ 3.7335
HJBX-0046.35 ± 0.512 ± 0.52.825≥ 3.4335
HJBX-0057.93 ± 0.515 ± 0.53.535≥ 3.4350
HJBX-0069.52 ± 0.517 ± 0.53.74≥ 3.4350
HJBX-00712.7 ± 0.722 ± 0.74.65≥ 2.4570
HJBX-00815.87 ± 0.725 ± 0.74.565≥ 2.2680
HJBX-00919.05 ± 0.731 ± 0.75.975≥ 1.77110
HJBX-01025.4 ± 0.738 ± 0.76.3≥ 1.18150
HJBX-01131.75 ± 0.746 ± 0.77.125≥ 1.18200

Burst values are minimums, given in MPa. Each pack holds 1–15 m; custom cuts and coils are quoted per order.

Three affiliated companies, one silicone chain

The hose is the last step of a chain we control from the compound up: raw material, compounding and the finished hose are handled by three affiliated companies, and Yutian ships the hose you buy.

Guilin Yutian New Materials

Silicone raw material and compound development, 28,000 m² site.

Dongguan Huahong Rubber and Plastic

Compounding, auxiliaries and batch control before extrusion.

Dongguan Yutian Silicone

Braiding, extrusion and finishing in a 6,800 m² plant.

What you can specify

Braid yarn

Polyester is standard. Cotton and nylon yarns are available for the same temperature range; pressure is quoted for polyester only, since the other yarns are tested per batch.

Colour

Transparent is standard. Opaque and tinted compounds follow a Pantone reference.

Bore and length

Any bore, wall and length to order, cut to length or coiled, with the end treatment agreed per order.

Assemblies

Fittings, clamps and connectors are supplied through partner manufacturers; they are not made in-house, but the assembled hose can be shipped as one part number.

Choosing between the constructions is a separate decision: braided, mesh-braided and steel-wire-braided hose differ in pressure and bore size, and the double-layer mesh range covers the wider-pressure end of the same family.

Where it is used

Pharmaceutical transfer

Media, buffer and product lines that are cleaned in place.

Biotech and laboratory

Peristaltic and low-pressure transfer where clarity matters.

Food and beverage

Milk, water, syrup and CIP lines on filling equipment.

Cosmetics

Cream, gel and fragrance transfer on filling machines.

Industrial processing

Coolant, solvent and pneumatic lines under vibration.

Oxygen concentrators

Medical device internal runs; the application is covered in the concentrator hose page and in the concentrator braided hose guide.

Certifications and documents

Material compliance: FDA 21 CFR 177.2600, NSF/ANSI 51, LFGB, REACH and RoHS. The plant runs an ISO 9001 and ISO 13485 quality system, and the ISO 10993 biocompatibility reports (cytotoxicity, skin sensitisation, skin irritation) are issued per part on request. Certificates travel with the shipment; third-party testing is arranged when your process needs a report rather than a certificate.

Production runs on 14 extrusion lines, 4 calendering lines and 7 moulding presses in a Class 100,000 cleanroom, at a monthly capacity of up to 8 million metres, since 2012.

Lead time and samples

Published sections

Ship in 5 to 7 working days from stock compounds.

Samples

Stock samples leave in 3 days and are free; freight is paid by the buyer.

Custom size

Any bore, wall and length to order; a size change needs no mould.

Custom construction

10 to 20 working days, depending on the yarn and the end treatment.

What is a braided silicone hose?

Three bonded layers: a smooth silicone bore, a high-temperature polyester yarn braid and an outer silicone jacket. The braid carries the pressure and the vacuum, so the bore stays round at full vacuum and resists kinking on a bend.

How much pressure can it take?

Burst is a minimum, not a working rating: 3.73 MPa on the small bores, falling to 1.18 MPa at ID 31.75 mm. Working pressure is the burst figure divided by the safety factor your process or standard requires, and it is quoted per project. The bore is rated for full vacuum without collapsing.

Is it food grade and medical grade?

Yes: platinum-cured medical and food grade silicone, supported by FDA 21 CFR 177.2600, NSF/ANSI 51, LFGB, REACH and RoHS documentation, with the ISO 10993 biocompatibility reports issued per part on request. The hose is not for human implantation.

Does it yellow or harden in service?

The compound is specified for colour hold, so clear hose stays clear through outdoor, washdown and repeated CIP service. Water and normal cleaning chemistry do not attack the wall; for steam, strong solvents or concentrated acids the duty temperature decides the grade.

Can I order a bore that is not in the table?

Yes. The hose is made by extrusion and braiding, so any bore, wall and length is set at the die rather than by a mould: a new size is a normal order, not a tooling project. The eleven published sections, HJBX-001 to HJBX-011, simply ship fastest.

What temperature range does it work at?

−40 °C to +200 °C continuous, for all three yarn options.

Can the braid yarn, colour or hardness be changed?

Polyester is standard; cotton and nylon yarns are available at the same temperature range, with pressure quoted for polyester only because the other yarns are tested per batch. Colours follow Pantone references; 70 Shore A bore and 60 Shore A jacket are standard.

What is the lead time, and can I get a sample?

Published sections ship in 5 to 7 working days, and stock samples leave in 3 days. Custom sizes and constructions take 10 to 20 working days. Stock samples are free; freight is paid by the buyer.

Need braided silicone hose for a food, medical or pressure line?

Send the bore, the pressure or vacuum, the fluid and the temperature; you get the construction, the burst figure and a sample date back.
