Silicone LED Diffusers, Sleeves and Neon Flex Manufacturer

Extruded in Dongguan since 2012 · 14 extrusion lines · 4–28 mm strip range

Yutian extrudes silicone LED diffusers, covers and neon flex for linear lighting: clear sleeves for a 4–28 mm strip range, diffused profiles with two-colour walls, snap-on covers for aluminium channels, and D-shape or round neon flex for signage. Profiles are platinum-cured, rated −40 °C to +200 °C, and supplied as cut lengths or 200 m coils.

Since 2012
Silicone extrusion
4–28 mm
LED strip range
−40 to +200 °C
Service temperature
14 lines
Extrusion capacity
Even light · no visible dotsResistant to yellowing · UV stableFlexible · bendable profilesCustom shapes and coloursStock samples on requestEnd caps and clips via partners

Inside our silicone extrusion plant

Since 2012 Yutian Silicone has extruded silicone LED diffusers, covers and neon flex in Dongguan. The plant covers 6,800 m² with 14 extrusion lines, 4 calendering lines and 7 compression moulding lines, plus a Class 100,000 cleanroom.

Compounds are platinum-cured and rated −40 °C to +200 °C; they are resistant to yellowing under normal LED operating temperatures. Standard sections ship in 5–7 days, stock samples in 3 days, and custom cross-sections in 10–20 working days.

Silicone parts are produced in-house; aluminium profiles, end caps and clips are integrated through partner suppliers, so a complete kit can ship together. More than 2,600 customers have bought from us, and the monthly inspection pass rate runs above 95%.

Technical specifications & profiles

What is fixed, and what is set on your sample

Light transmission
Confirmed on your sample. The value follows the compound and the wall thickness you need, not a catalogue figure.
Diffusion
Set per project: front-lit, side-lit or curved face, so that the run reads even under your strip.
Water ingress protection
IP67 or IP68 when the run is sealed as an assembly with the agreed end treatment.
Continuous service temperature
−40 °C to +200 °C.
UV and yellowing
UV-stabilised grades are supplied for outdoor runs; yellowing is checked on your sample under the exposure you specify.
Compatible LED strip
Sleeve sections take 6–15 mm flexible PCBs; neon sections take 6–30 mm strip cavities.
Compound-level certificates
RoHS and REACH are held at compound level; FDA and LFGB apply to food-grade compounds.
Flame rating
UL94 HB for the compounds we run as standard; another rating is quoted against the standard you need.

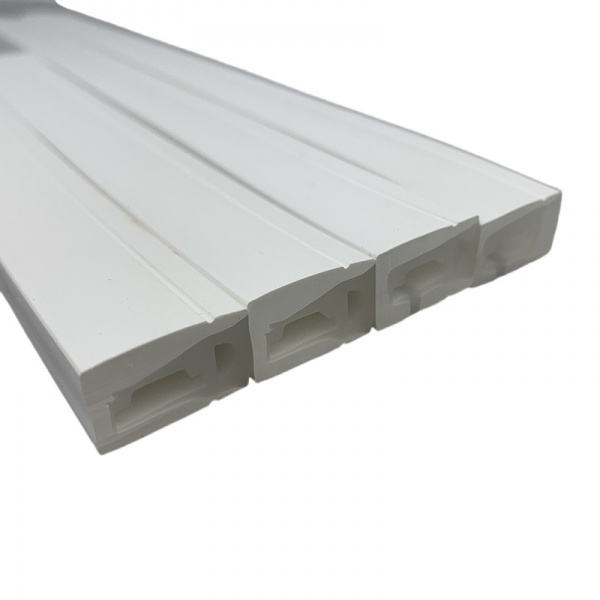

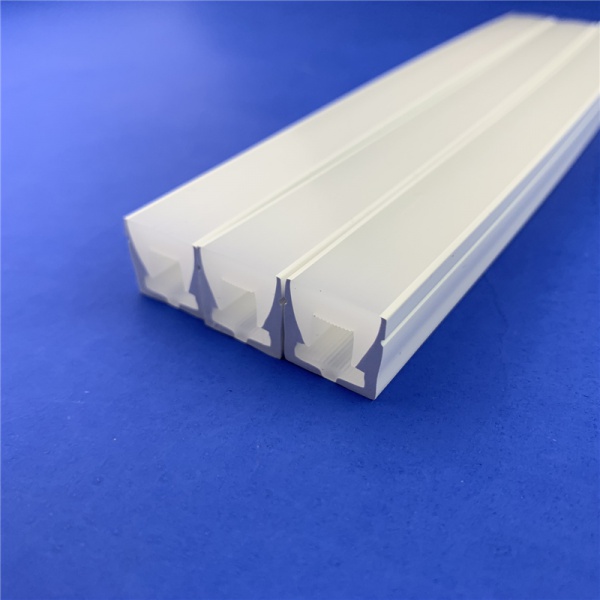

Clear silicone sleeves

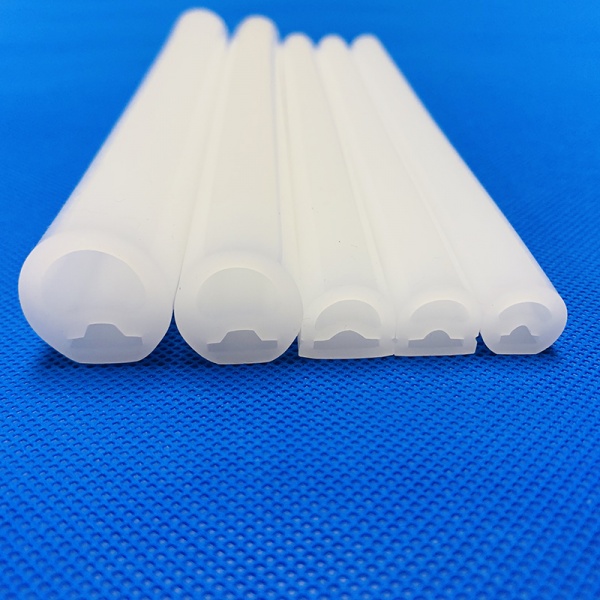

  • Round sections for 6–15 mm flexible PCBs.
  • D-shape with a flat base for surface mounting.
  • U-section, open on one side, for drop-in loading.
Clarity checked on your strip

Diffused silicone sleeves

  • Front-lit, side-lit and curved profiles.
  • Diffusion set by compound and by wall thickness.
  • Evenness confirmed on a sample of your strip.
No fixed catalogue value

Covers for aluminium profiles

  • Snap-on and slide-on lips matched to the slot.
  • Silicone end caps and clips moulded to the section.
  • Coils and cut lengths; standard 2 m and 2.5 m.
IP67 / IP68 when sealed

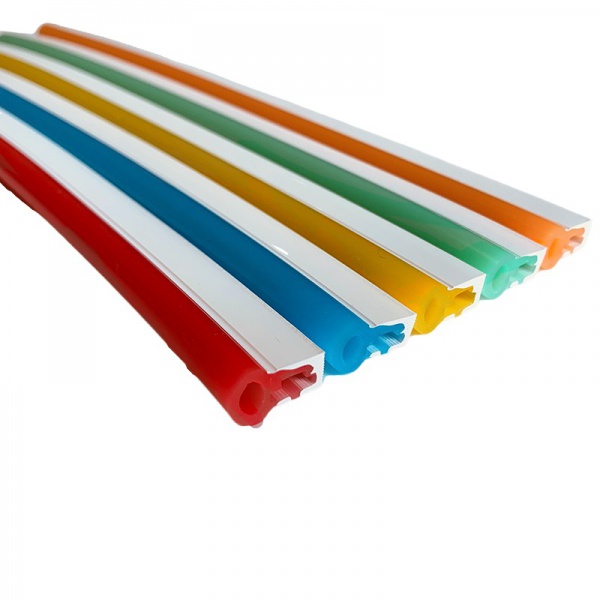

Neon flex and letter strips

  • Standard sections from 6 × 11 mm to 100 × 30 mm, plus multi-colour and edged variants.
  • Bend radius follows the section; confirmed on the drawing you send.
  • For signage, channel letters, contours and wall lines.
Coils up to 100 m

Customization capabilities

  • Shapes: any cross-section, drawn to your profile; tolerance per our published table or as agreed on the drawing.
  • Colours: clear, milky white, opal, black, or matched to the sample you send.
  • Finish: glossy, matte, anti-static, or a UV-stabilised compound.
  • Accessories: silicone end caps and clips; aluminium clips for neon sections.
  • Tooling: USD 100–400 per profile, one-time, quoted against your drawing.

Testing and compliance

  • Batch records kept for every production lot.
  • Material certificates: RoHS, REACH, UL94 HB, at compound level.
  • Food contact: FDA and LFGB documentation for food-grade compounds.
  • Sealing: IP67 or IP68 confirmed on sealed assemblies, on request.

Values above are material-level. Optical results depend on your profile, strip and target light effect, and are issued on the sample approval sheet. Free samples are cut from stock sections; custom sampling takes 10–20 working days.

Advantage

Six things that decide whether a profile is worth buying

Extruding silicone since 2012

ISO 9001 factory with 14 extrusion lines, 4 calendering lines and 7 moulding presses in 6,800 m² in Dongguan. Profiles are extruded in-house, then cut and packed to your drawing.

Platinum-cured and UV-stabilised

Continuous service from −40 °C to +200 °C. Platinum-cured compounds, with UV-stabilised grades for outdoor runs. Yellowing is checked on your sample under the light and exposure you specify.

Stock sections, free samples

Free samples are cut from stock sections and dispatched in 3 working days. Standard production takes 5–7 working days. Minimum order value: USD 500.

Custom profiles

One-time tooling of USD 100–400 per profile, quoted against your drawing. Sampling takes 10–20 working days. Wall thickness, finish and section shape are matched to the aluminium channel you use.

Accessories matched to the section

Silicone end caps and clips are moulded to fit the section; aluminium clips are supplied for neon sections. Capped or bonded assemblies are quoted as one finished part.

Material-level certificates

RoHS, REACH and UL94 HB are held at compound level and apply to every silicone compound we produce. FDA and LFGB apply to food-grade compounds; a product-specific test report is arranged on request.

Certificates are held at material level. Product-specific test reports are quoted separately, to the standard you need.

Silicone vs PVC vs PU: a fair comparison

Where each material wins, and where it does not

Property Silicone PVC PU
Light transmission Set by compound: clear, diffused or opal, matched to your strip and profile. Clear grades exist; clarity drops as the part yellows with UV. Clear or diffused grades; UV stabilisers are usually needed outdoors.
Service temperature −40 °C to +200 °C, continuous. Softens at elevated temperature; not for hot fixtures. Limited at the top of the range; check the grade before specifying.
Low-temperature flexibility Stays flexible below freezing. Stiffens in the cold, which is when cracks start. Flexible at room temperature; confirm the low end with the supplier.
UV and weather UV-stabilised compounds for outdoor runs; clarity is checked on your sample. Yellows and embrittles outdoors unless it is stabilised. Needs UV stabilisers outdoors and usually yellows over time.
Chemical resistance Resists heat ageing, ozone and water; not for strong solvents. Plasticisers can migrate and some solvents soften it. Good against oils; moderate against acids.
Forming and radii Extruded to any cross-section, and bends along a curved run without tooling. Stiffer walls limit tight radii and need heat forming for tight bends. Flexible and abrasion resistant; good where the run is handled.
Safety and certificates Food-grade and medical grades available; RoHS and REACH at compound level. Food-contact grades need their own approval, grade by grade. Grade dependent; ask for the datasheet before a food or medical job.
Typical cost Higher material cost, quoted against your drawing. Lowest material cost of the three. Between the two, depending on grade.

PVC and PU figures vary by grade and supplier, so the comparison stays qualitative. Silicone performance is confirmed on your sample.

When to choose which

Choose silicone when

the run is outdoors or hot, has to stay clean enough for food or medical contact, or has to hold its colour and clarity over years of service.

Choose PVC when

the job is indoors, the temperature stays low, the shape is simple, and the budget leads. Expect stiffer walls and less tolerance for tight radii.

Choose PU when

abrasion and handling are the main risk and the temperature stays moderate, with a budget between the two.

From drawing to repeat order

What happens after you send a section, and what we need from you

1
Send the section
A drawing of the profile, or a photo with the slot width and depth. Add the strip you run and the length you need per run.
2
Quotation and tooling
We quote the profile and the tooling in one reply. Tooling is USD 100–400 per custom profile, one-time.
3
Sample
Stock sections are cut and dispatched in 3 working days. A custom profile is sampled in 10–20 working days.
4
Approval sheet
The sample is issued with a sheet that fixes wall thickness, hardness, colour and finish. Optical performance is confirmed on your strip.
5
Production and repeat orders
Standard sections ship in 5–7 working days. Repeat batches keep the same section, compound and packing.
What we need from you
A drawing of the section, or the aluminium profile with slot width and depth
The LED strip you run: width, LED density and power per metre
The effect you are after: clear, diffused, or a colour to match
Run length, order quantity and how the lengths are packed

Minimum order value USD 500. Samples are cut from stock sections; custom sampling is quoted with the tooling.
Times are working days from a confirmed drawing and a confirmed strip. Tooling and sampling are quoted against the section you send.

LED silicone diffuser FAQ

What buyers ask before a first order

What is the minimum order?
The minimum order value is USD 500, quoted together with tooling and freight.
Can I get a sample before ordering?
Stock samples are free of charge; freight is quoted with the dispatch. A custom profile is sampled against the tooling, in 10–20 working days.
What does tooling cost?
USD 100–400 per custom profile, one-time, quoted against your drawing. The figure depends on the section and on how many walls have to be held to tolerance.
How long is production?
Standard sections ship in 5–7 working days from confirmation. Custom sampling takes 10–20 working days, and repeat batches are scheduled against your call-off.
Can you make a section that is not in your catalogue?
Yes. Send a drawing, or a profile with the slot width and depth, and we quote the tooling with the price. Wall thickness, colour and finish are fixed on the approval sheet.
What certificates do you hold?
RoHS, REACH and UL94 HB are held at compound level and apply to every silicone compound we run. FDA and LFGB apply to food-grade compounds. ISO 9001 covers the plant. A product-specific test report is arranged on request.
Are the profiles waterproof?
IP67 or IP68 applies when the run is sealed as an assembly, with the end treatment agreed per project. It is not a property of the profile on its own.
What about light transmission and evenness?
Both are set by the compound and the wall, against the strip you run. We do not publish a catalogue percentage: the value is confirmed on your sample and written on the approval sheet.
Do you supply end caps and clips?
Where a moulded cap or clip exists for the section, it is quoted with the profile. For sections without one, the end treatment is agreed per project.
Can you match a colour or an existing part?
Send the sample and we match against it. A profile you already buy is checked against our sections first, so you only pay for tooling when a new section is really needed.
Lead times are working days from a confirmed drawing and a confirmed strip. Anything not covered here is answered in one reply with the quotation.

Silicone diffusers, sleeves and neon flex, made to your section

Send the section and the strip; we quote the profile, the tooling and the sample in one reply.

✓ Stock sections ship in 5–7 working days
✓ Tooling USD 100–400 per custom profile, one-time
✓ Stock samples free of charge, dispatched in 3 working days
Minimum order value USD 500. More sections on the LED silicone sleeve range.
