Silicone sleeve for LED strip

Clear silicone sleeve for LED strip, extruded in 13 square, D and U sections for 6 mm to 15 mm flexible PCBs. Platinum-cured silicone, 70 +/- 5 Shore A, -40 to +200 C, IP67/IP68 as a sealed assembly. Cut lengths or coils.

    Product Features

    Clear silicone sleeve for LED strip: the strip slides in and stays protected
    13 standard sections, square, D and U, for 6 mm to 15 mm flexible PCBs
    Platinum-cured silicone, 70 ± 5 Shore A, −40 °C to +200 °C
    Wall thickness set to your light effect; evenness confirmed on a sample of your strip
    IP67 or IP68 as a sealed assembly, with the end treatment agreed per project
    Coils or cut lengths; USD 500 minimum order value

    Application

    Architectural outline
    Facade and reveal lines where the sleeve follows the building.
    Cabinets and coves
    Shelf and wardrobe lines with a clear, unbroken run.
    Signage and channel letters
    Enclosed strip runs behind letters and panels.
    Landscape and facade
    Garden, step and pathway lines that see weather.
    Display and retail
    Showcase edges and plinths with the strip protected.
    OEM fixtures
    Sleeve cut and packed for a luminaire maker's assembly line.

  • Parameters

    Product Features

    Clear silicone sleeve for LED strip: the strip slides in and stays protected
    13 standard sections, square, D and U, for 6 mm to 15 mm flexible PCBs
    Platinum-cured silicone, 70 ± 5 Shore A, −40 °C to +200 °C
    Wall thickness set to your light effect; evenness confirmed on a sample of your strip
    IP67 or IP68 as a sealed assembly, with the end treatment agreed per project
    Coils or cut lengths; USD 500 minimum order value

    Application

    Architectural outline
    Facade and reveal lines where the sleeve follows the building.
    Cabinets and coves
    Shelf and wardrobe lines with a clear, unbroken run.
    Signage and channel letters
    Enclosed strip runs behind letters and panels.
    Landscape and facade
    Garden, step and pathway lines that see weather.
    Display and retail
    Showcase edges and plinths with the strip protected.
    OEM fixtures
    Sleeve cut and packed for a luminaire maker's assembly line.

A clear sleeve that carries the strip and keeps the weather out

Extruded clear silicone tube that the LED strip slides into. The wall does two jobs at once: it diffuses the light and it keeps dust, splash and handling away from the strip, so a standard indoor strip can be used where a bare strip would not last.

13 sections, 6–15 mm PCBSquare, D and U shapes−40 °C to +200 °CIP67 / IP68 when sealed
Clear silicone sleeve for LED strip in square, D and U sections
Clear sections for 6–15 mm flexible PCBs; the strip slides in from the end.

What a silicone sleeve for LED strip is

A sleeve is a silicone tube with a cavity sized to the flexible PCB. You push the strip in from the end, cut the sleeve to length where the run ends, and the strip is then enclosed on all sides or on three sides, depending on the section.

The shape follows what the strip has to do. A square section encloses it fully and gives a line of light on both faces. A D-shape keeps a flat base against the mounting surface and a rounded top. A U-section leaves one side open, so the strip drops in and the light is aimed through one wall.

The wall is the optical part as well as the barrier. Its thickness, and the compound it is made from, decide how much of the strip's own brightness reaches the surface and how much the individual LEDs blend. Both are set per project, against the strip you send.

Three affiliated companies, one silicone chain

Extrusion is the last step of a chain we control from the compound up. The three companies below are affiliated; each does what it is set up for, and Yutian handles the profile you buy.

Guilin Yutian New Materials

silicone raw materials and auxiliary materials

Dongguan Huahong Rubber & Plastic Material Co., Ltd

compound development and mixing

Dongguan Yutian Silicone Rubber Technology Co., Ltd

extrusion, finishing and packing in our 6,800 m² plant in Changping, Dongguan

Why buyers place the profile with us

Compound in our own hands

Transmittance, colour and flexibility come from the compound. Because we compound and extrude, a change in the light effect is a formulation change, not a new supplier.

Extrusion from your drawing

We work from the section drawing or the groove you have to fill, and tell you whether an existing die fits or a new one is needed.

Finishing and accessories

Cut to length and packed to suit your line. Where the fixture needs a sealed end, the method is agreed before the order.

Paperwork that matches the claim

Certificates are described at the level they are held. Where a product-specific test report is needed, it is quoted as a separate project instead of implied.

Key advantages

Small sections for narrow strips

The standard range starts at a 6 mm PCB and runs to 15 mm, with cavity heights around 4 mm so the sleeve stays slim against the surface.

Three shapes, one family

Square for a fully enclosed line, D for a flat base, U for a strip that drops in from the open side. The same compound and the same wall logic run through all three.

A wall you can specify

Wall thickness is part of the die, not an afterthought. Where the design needs more diffusion or more protection, we change the section rather than the strip.

Sealed as an assembly

The sleeve alone is not a rating. Supplied with the end treatment agreed for the run, the assembly is rated IP67 or IP68, depending on the section and the method used.

Flexible without whitening

The compound is formulated to bend along a curve and stay clear at the bend. A sleeve that turns white where it is bent has been over-filled or under-cured, not merely flexed.

Cut to length before it ships

Coils of continuous sleeve or fixed lengths cut to your schedule. Where the line needs a common cut length, it can be packed in that length.

Silicone, not plasticised PVC

There is no plasticiser to migrate out of the wall, so the sleeve does not harden or go tacky in service the way soft PVC can.

Tooling from your section

If none of the 13 standard sections fits the strip and the fixture, we quote a die from your drawing before production.

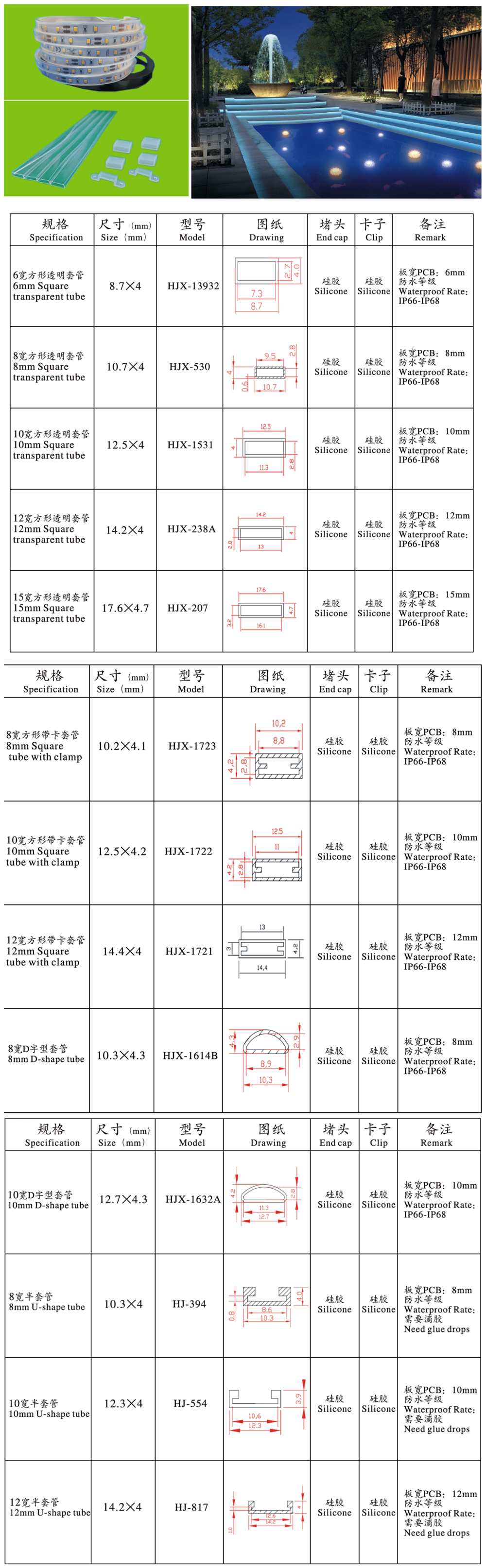

Standard sections

Sizes are outside dimensions; the last column is the flexible PCB width the cavity takes. Sections are also quoted from a drawing when the strip or the fixture sits outside this list.

SectionOutside sizeModelPCB widthShape
6 mm square8.7 × 4 mmHJX-139326 mmSquare
8 mm square, clear10.7 × 4 mmHJX-5308 mmSquare
10 mm square, clear12.5 × 4 mmHJX-153110 mmSquare
12 mm square, clear14.2 × 4 mmHJX-238A12 mmSquare
15 mm square17.6 × 4.7 mmHJX-20715 mmSquare
8 mm square, clipped10.2 × 4.1 mmHJX-17238 mmSquare, clipped
10 mm square, clipped12.5 × 4.2 mmHJX-172210 mmSquare, clipped
12 mm square, clipped14.4 × 4 mmHJX-172112 mmSquare, clipped
8 mm D10.3 × 4.3 mmHJX-1614B8 mmD-shape
10 mm D12.7 × 4.3 mmHJX-1632A10 mmD-shape
8 mm U10.3 × 4 mmHJ-3948 mmU-shape
10 mm U12.3 × 4 mmHJ-55410 mmU-shape
12 mm U14.2 × 4 mmHJ-81712 mmU-shape

Model numbers are our internal references and are quoted here so that a repeat order can be matched to the same die.

Square, D or U — choosing the section

SquareD-shapeU-shape
Strip loadingSlides in from the endSlides in from the endDrops in from the open side
Light directionBoth facesRounded face, flatter lineOne face, aimed
SealingClosed tube, easiest to sealClosed tube, flat baseOpen side needs a cover or a seal
Best forEnclosed runs, splash areasFlush lines and edgesFixtures where the strip is fitted in place

If the strip is already bonded into a profile, a U-section lets you fit the sleeve over it. If the run has to survive washing or weather, the closed square section is the simpler starting point.

Technical specification

ParameterValue
MaterialPlatinum-cured silicone, clear or translucent compound
Hardness70 ± 5 Shore A
Density1.2 ± 0.1 g/cm³
Tensile strength≥ 8 MPa
Elongation at break≥ 300 %
Tear strength≥ 30 kN/m
Service temperature−40 °C to +200 °C
FlammabilityUL94 HB, raw-material level
ColourClear, translucent, opal or tinted to a physical sample
PCB width6 mm to 15 mm in the standard sections; wider on a new die
IP ratingIP67 or IP68 as a sealed assembly, per section and end treatment
LengthContinuous coils or cut lengths to your schedule
Minimum orderUSD 500 order value

Values above describe the compound and the section, not a measured optical result. Light behaviour is confirmed on a sample built with your strip.

Applications

The sleeve is chosen by what the strip has to survive and how the light should read on the surface:

Architectural outline

Facade and reveal lines where the sleeve follows the building.

Cabinets and coves

Shelf and wardrobe lines with a clear, unbroken run.

Signage and channel letters

Enclosed strip runs behind letters and panels.

Landscape and facade

Garden, step and pathway lines that see weather.

Display and retail

Showcase edges and plinths with the strip protected.

OEM fixtures

Sleeve cut and packed for a luminaire maker's assembly line.

Made to your strip

Bring the strip, not a catalogue number: the cavity is set from the PCB width and the strip height, and the wall from the effect you want.

  • PCB width and strip height, or a sample of the strip
  • Outside size and wall thickness, or the profile groove it has to fit
  • Section: square, D or U, and whether the open side needs closing
  • Colour and tint, matched to a physical sample
  • Cut length, coil length and packing
  • End treatment if the run has to be sealed

A new section is quoted as a die before production; an existing section moves straight to a sample.

Samples and lead time

Stock samples: free

Samples of standard stock items are sent free of charge, usually dispatched within 3 days.

Custom runs: quoted

A run in your compound, section or cut length is quoted with the project, including any die.

Production lead time

Standard items 5–7 days. Custom items 10–20 working days after sample approval.

Certificates and quality

The certificates below cover our compounds and our management system. They do not mean that every finished profile has been individually tested; a product-specific test report is a separate project and is quoted as one.

StandardWhat it coversLevel
ISO 9001:2015Quality management systemCompany level
ROHSRestricted substancesRaw-material level
REACHSubstance registrationRaw-material level
UL94 HBFlammability of the compoundRaw-material level
Class 100,000 cleanroomProduction environmentIn use

Monthly inspection pass rate is 95% or higher and batch acceptance pass rate is 99%.

Frequently asked questions

What is a silicone sleeve for LED strip?

An extruded silicone tube with a cavity sized to the flexible PCB. The strip slides in and the sleeve protects it from dust, splash and handling while the wall diffuses the light.

Does the sleeve change the light colour?

A clear compound keeps the colour of the strip; an opal or tinted compound softens it. How much is a compound and wall-thickness question, so we confirm it on a sample built with your strip rather than quoting a catalogue percentage.

Is it waterproof?

The sleeve itself is solid silicone. With the end treatment agreed for the run, the assembly is rated IP67 or IP68; the rating belongs to the sealed assembly, not to the tube alone.

Which strip widths fit?

The 13 standard sections take 6 mm to 15 mm PCBs. Outside that, a new die is quoted from your drawing.

Can it follow a curve?

Yes. Silicone bends along the run without cracking, and the section stays clear at the bend. Tight radii are checked against the section before production.

Can I cut it on site?

Yes. The sleeve cuts with a sharp knife or scissors, and the cut end is finished with the end treatment you have chosen.

Do you supply end caps and clips?

End treatment is agreed per order: where the run has to be closed and sealed, the method is specified with the sample so that the rating is not assumed.

What are the order terms?

Minimum order value USD 500. Stock samples are free; custom runs are quoted. Standard items ship in 5–7 days, custom items in 10–20 working days after sample approval.

Related silicone LED parts

The other silicone LED parts we extrude, and the guides that explain how the formats differ:

Browse the full LED silicone parts category for sleeves, diffusers, neon flex and covers.

Need a clear sleeve sized to your strip?

Send the strip width and height, the section shape and the length per run. We will confirm which of the 13 standard sections fits, or quote a die from your drawing.

salesmanager@yutiansilicone.com · Mobile / WhatsApp +86 180 2892 1514
DongGuan Yutian Silicone Rubber Technology Co., Ltd
Room 801, Building 10, No. 2, Tutang Industrial 2nd Heng Road, Changping Town, Dongguan City, Guangdong Province, China
Silicone manufacturer since 2012
