Braided silicone hose manufacturer

A platinum-cured silicone bore with a braid wound over it, held inside a silicone skin: pressure headroom and abrasion resistance, with a bore that stays the diameter it was extruded at.

Braid, compound and wall are set per line, so the tube you get matches the pressure, temperature and cleaning regime of the run it sits on.

●ID 3–31.75 mm, built to the drawing
●Braid in polyester, aramid or stainless steel
●Burst pressure up to 3.73 MPa, quoted per size
●Rated −40 °C to +200 °C
●FDA 21 CFR 177.2600 and LFGB documents with the order
●Braid yarn, angle and coverage set per line

YUTIAN Braided silicone hose

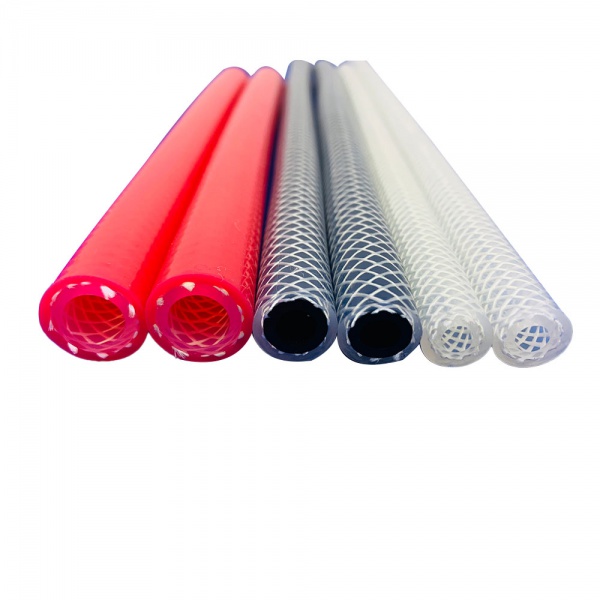

A braided silicone hose is a platinum-cured silicone tube with a braid wound around it and a silicone skin over the braid. The braid is what makes it a different part from plain silicone tubing: it carries the hoop load the pressure puts into the wall, holds the bore at the diameter it was extruded at, and takes the abrasion where the line rubs.

Pressure
Burst pressure runs to 3.73 MPa on the small bores and eases as the bore grows. The figure is quoted per size, not as one number for the range.
Abrasion
The braid sits under the skin, so the wear lands on the outside layer instead of thinning the wall that holds the fluid.
Shape
A reinforced wall stays round under pressure and resists kinking at a tight bend, so flow rate stays where the line was designed for.

Braid in polyester, aramid or stainless steel. Rated −40 °C to +200 °C. Food-contact documents ship with the order: FDA 21 CFR 177.2600, LFGB, plus REACH and RoHS declarations.

Production runs on 14 extrusion lines, 4 calendering lines and 7 moulding presses in a Class 100,000 cleanroom; the plant has run since 2012.

Braided silicone tube for oxygen concentrator

Braided silicone tube for oxygen concentrator

Oxygen concentrator braided silicone hose: a platinum-cured medical grade silicone bore, a polyester braid and an outer jacket bonded into one wall. ISO 10993 reports on request, ISO 13485 and ISO 9001 quality systems, full vacuum, burst 1.18–3.73 MPa by bore, −40 °C to +200 °C, ID 3–31.75 mm published sections.
External braided silicone tube

External braided silicone tube

External braided silicone tube: a silicone inner tube with a dense braid wound over the outside, so the braid takes the pressure and the abrasion while the fluid only touches silicone. Burst 3–5 MPa, FDA 21 CFR 177.2600 and LFGB silicone, −40 to +200 °C, braid yarn and pattern customizable.
Braided silicone tube for coffee machine

Braided silicone tube for coffee machine

Braided silicone tube for coffee machines: a food-grade silicone bore, a polyester braid and an outer silicone skin. Pump-to-brew-head runs at 9 bar, steam runs at 125–150 °C, sections from 3 × 8 to 5 × 11 mm, FDA 21 CFR 177.2600 and LFGB silicone, working pressure quoted per segment.
Braided Silicone Tubes for Ice Makers

Braided Silicone Tubes for Ice Makers

Braided silicone tube for ice makers: an inner-braid three-layer build (food-grade silicone bore, braid, silicone skin) that keeps a 2.0 mm wall from collapsing on the pump suction line. ID 4–12 mm common, −40 to +200 °C, working pressure quoted per section against the safety factor, NSF/ANSI 51 and FDA 21 CFR 177.2600 materials.
Braided silicone hose for Bubble Tea Machine

Braided silicone hose for Bubble Tea Machine

Braided silicone hose for bubble tea machines: platinum-cured food-grade silicone with a polyester braid between the walls, built for the steam and hot water unit where steam is pulsed at up to about 190 °C. 4–10 mm ID, wall 2.0–3.0 mm, −40 to +200 °C, FDA 21 CFR 177.2600 and LFGB. Braid and ply count are quoted per line; syrup and drain lines should use clear unreinforced tubing.

Standard Size Of Braided Silicone Hose

Model ID (mm) OD (mm) Wall (mm) Burst pressure (kgf/cm²) Burst (MPa) Min. bend radius (mm)
HJZX-001 3 ± 0.5 8 ± 0.5 2.5 ≥ 38 3.73 35
HJZX-002 4 ± 0.5 9 ± 0.5 2.5 ≥ 38 3.73 35
HJZX-003 5 ± 0.5 11 ± 0.5 3.0 ≥ 38 3.73 35
HJZX-004 6.35 ± 0.5 12 ± 0.5 2.825 ≥ 35 3.43 35
HJZX-005 7.93 ± 0.5 15 ± 0.5 3.535 ≥ 35 3.43 50
HJZX-006 9.52 ± 0.5 17 ± 0.5 3.74 ≥ 35 3.43 50
HJZX-007 12.7 ± 0.7 22 ± 0.7 4.65 ≥ 25 2.45 70
HJZX-008 15.87 ± 0.7 25 ± 0.7 4.565 ≥ 23 2.26 80
HJZX-009 19.05 ± 0.7 31 ± 0.7 5.975 ≥ 18 1.77 110
HJZX-010 25.4 ± 0.7 38 ± 0.7 6.3 ≥ 12 1.18 150
HJZX-011 31.75 ± 0.7 46 ± 0.7 7.125 ≥ 12 1.18 200

Burst pressure is quoted per size; working pressure is the burst figure divided by the safety factor of your line (4:1 general duty, 3:1 where a shorter service interval is accepted).

Cut-away of the braided layer over the silicone bore

If you need custom sizes or special weaving parameters, please refer to the custom capabilities description above or contact us directly.

Application

Coffee machines — commercial and domestic

The run from the pump to the brew head is the one that needs a braid: 9 bar at the puck, 10–12 bar behind the pump, delivered in pulses. The braid holds the bore, so the shot time stays where it was set instead of drifting as the wall creeps.

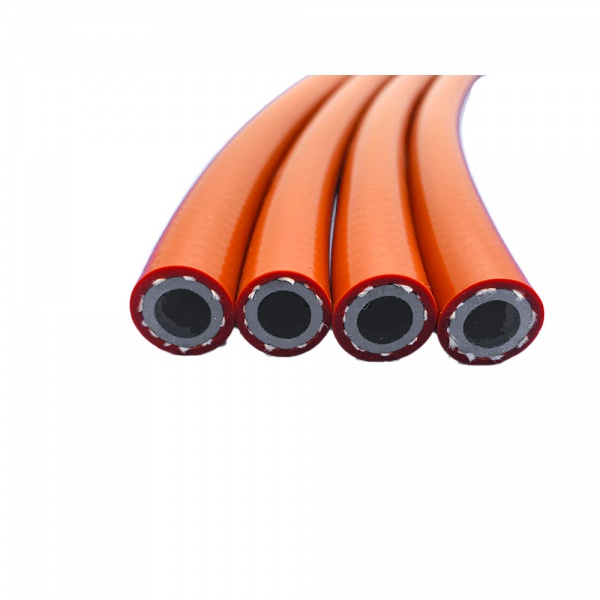

Steam run: 1.0–1.5 bar with steam at 125–150 °C; the hose is rated −40 °C to +200 °C.
Food-contact documents ship with the order: FDA 21 CFR 177.2600 and LFGB.
Braided hose for coffee machines

Ice makers — commercial and modular

The suction line between reservoir and pump sits below atmospheric pressure, so the load is inward: a thin wall closes a little on every cycle and the harvest slows down without any obvious failure. The braid keeps the bore at the diameter it was extruded at.

Circulating water at 0–5 °C, wash and rinse cycles of 15 and 25 minutes.
NSF/ANSI 51 material documentation for the silicone and the colour compound.
Braided hose for ice makers

Bubble tea and beverage dispensers

The braided position is the steam and hot water unit, where steam is pulsed and the wand is bent all day. The syrup and drain lines are the opposite case: low pressure, and the operator has to see the fluid, so those runs use clear unreinforced tubing.

Documented commercial duty on bubble tea equipment: pressure pulses around 15 bar, steam up to about 190 °C.
4–10 mm ID; the syrup line stays clear so crystallisation is visible before it blocks.
Braided hose for bubble tea machines

Water dispensers — instant hot and cold

Chilled water near 0–10 °C and hot water at 85–98 °C share one cabinet, and the line is bent every time the tap is used. Here the braid is bought for kink resistance and wear, not for pressure: the hot run is close to atmospheric.

Inlet pressure 2–4 bar; the dispense side is tank pressure.
Platinum-cured bore, no plasticiser, so the hot side carries no taste into the cup.

Oxygen concentrators and CPAP

Pressure-swing adsorption delivers oxygen in pulses and the line is routed tight around the sieve beds. The braid keeps the bore and the wall stable under that cycling, and the exposed outside takes the abrasion where the line crosses a frame.

Medical-grade silicone with material documents; the tube is not for human implantation.
Smooth bore, no plasticiser, so nothing migrates into the gas path.
Braided tube for oxygen concentrators

Wine making and beverage processing

Transfer and cleaning-in-place lines run food-grade silicone at cellar temperature, with caustic and acid cleaning between batches. The braid protects the wall on the outside while the bore stays silicone wherever the product passes.

FDA 21 CFR 177.2600 and LFGB documents, plus REACH and RoHS declarations.
Silicone resists the cleaning chemistry; the braid is what a hose rubs against instead of a wall.

Automotive and EV thermal management

Coolant loops around battery packs, motors, inverters and radiators: glycol at temperature, continuous vibration, and a route that rubs against brackets and panel edges. The braid takes the wear and holds the bore under pulsed flow.

Rated −40 °C to +200 °C; braid in polyester, aramid or stainless steel.
Platinum-cured bore keeps the coolant clean; the braid is outside the fluid path.
Automotive braided silicone hose

Braid, compound and wall are set per line, so a quote starts with the medium, the pressure behaviour and the route — not with a machine class.

图片展示
图片展示

Why Choose Yutian Silicone Braided Hose

Platinum-cured, so there is nothing left to migrate

The compound is addition-cured with a platinum catalyst, not peroxide-cured, so there is no peroxide residue and no post-cure by-product sitting in the wall. The bore is smooth and non-porous, and the tube carries no plasticiser to leach into what passes through it.

FDA 21 CFR 177.2600 and LFGB documents with the order

The braid carries the load, it is not decoration

The yarn is wound at a set angle and coverage and takes the hoop load the pressure puts into the wall, so the bore keeps the diameter it was extruded at under pulsed pressure. That is what holds shot time, flow rate or dosing volume steady as the hose ages.

Burst 1.18–3.73 MPa, quoted per size

−40 °C to +200 °C, and the cold end is the harder one

Continuous service is −40 °C to +200 °C, and the silicone stays flexible at both ends instead of hardening in a cold cabinet or cracking on a hot line. Where a run needs more than that — steam duty, hot oil, high-temperature grades — the construction is quoted against the actual condition rather than assumed from a brochure.

Continuous range, not a peak figure

Built to the drawing, not to a shelf list

Bore from 3 mm to 31.75 mm, wall set by the section, braid in polyester, aramid or stainless steel, colour in the compound, and cut length or coil to suit the line. Nothing here is limited to the sizes on a stock table, and a trial quantity is agreed per project.

Braid yarn, angle and coverage set per line

The plant behind the lead time

Extrusion, braiding and finishing run in one 6,800 m² plant: 14 extrusion lines, 4 calendering lines and 7 moulding presses, a Class 100,000 cleanroom, and capacity of up to 8 million metres a month. Production has run since 2012 under ISO 9001 and ISO 13485 systems.

Standard 5–7 days, samples 3 days

A bore that can actually be cleaned

A smooth platinum-cured bore does not hold product, protein or cleaner the way a textured or plasticised wall does, which is what matters on a CIP or SIP line. Cleaning chemistry, temperature and dwell time are matched to the compound when the line is quoted, not left to the buyer to discover.

Platinum-cured, no plasticiser

Traceable from compound to finished coil

Batch records follow the tube through compounding, extrusion, braiding and finishing, and the material documents travel with the shipment. Where a machine builder needs a product-level report for a unit certificate, the testing is arranged per project — that is a different document from a material declaration, and we quote it as such.

Material documents with the shipment

The answers come before the purchase order

Send the machine, the line position, the section, the medium and the pressure behaviour, and a drawing if there is one. You get the construction, the burst figure for that section, the document list and a sample date back — before anyone asks you to commit to a quantity.

Custom 10–20 working days

How a quote is worked out

Most enquiries arrive with less than a full specification, which is normal. What follows is the order the questions are asked in, and what ends up on the quotation when they have been answered.

What usually arrives

A drawing with one dimension on it. A photo of the hose that failed. The machine model and the position. Occasionally just the words “braided silicone hose” and a length. None of these are a problem — they are the starting point, not a reason to send a catalogue back.

The four questions that change the answer

Not a checklist for its own sake — each one moves the construction in a different direction:

Where the line sits — suction, pressure, steam, drain or CIP. It decides whether a braid belongs at all.
Pressure behaviour — steady or pulsed, and the peak if it is pulsed. The peak decides the braid; the steady figure only sets the floor.
Medium temperature and ambient temperature. They are rarely the same number, and the compound follows the hotter of the two.
Medium and cleaning chemistry. Acid, caustic, sanitiser, or just water — it decides the compound grade and what testing is worth arranging.

What comes back

A specification before a price: bore and wall, braid yarn with its angle and coverage, end treatment and length, and the burst figure for that section rather than one number for the whole range. If a figure cannot be supported for the size, it is not put on the page or the quotation.

Then the price, the lead time and the documents

Standard sections run 5–7 working days, stock samples leave in 3 days, and a custom construction takes 10–20 working days after approval. Material documents travel with the shipment; where a machine builder needs a product-level report for a unit certificate, the testing is quoted separately because it is a different document.

Send the line position, the medium, the section and the pressure behaviour. The first answer back is a construction, not a price.

图片展示

Certification

图片展示

Documents are issued for a product and a compound, not for a brand. Which ones apply depends on the market and the medium, and the quotation names them rather than leaving the buyer to guess from a badge list.

Food contact

The silicone compound is documented against FDA 21 CFR 177.2600 for repeated food contact, and against LFGB, including the (EU) 1935/2004 sensory test where the market asks for it.

Restricted substances

REACH and RoHS declarations ship with the order, with SVHC statements on request. Declarations are declarations — they are not presented as certificates.

Quality systems

Production runs under ISO 9001, ISO 13485 and ISO 14001 systems, and batches trace from compound to finished coil. A system certificate covers the plant; it is not a certificate for the hose.

Material level and product level

On an inner-braid build the silicone and colour compound are documented to NSF/ANSI 51 as materials for food equipment. Where a machine builder needs a product-level report for a unit certificate, the testing is arranged per project and quoted as its own line.

The certificate pages shown above are examples taken from other product ranges. The file for the part you order is issued against that part and named in the quotation.

Tell us the market and the medium, and the reply names the files you will receive: which standard, which level, and whether it comes with the shipment or has to be tested.

图片展示

How to specify a braided silicone hose

Six decisions set the part. Construction comes first, because it decides whether a braid belongs at all; temperature, pressure, bore and ends then narrow the rest.

1

Decide where the braid sits

An inner braid runs under a silicone skin, an external braid is the outside surface, and a mesh sits between layers. The bore is the same silicone in all three — what changes is which layer takes the wear, how the outside can be cleaned, and how much pressure headroom the construction buys.

2

Pin the temperature at both ends

−40 °C to +200 °C continuous covers most lines. Above that — repeated steam, hot oil, hot air — the construction is quoted against the actual peak and cycle, not against one figure for every bore. The cold end ages a tube as often as the hot end: check the cabinet temperature, not only the fluid.

3

Work the pressure out from burst, not from a table

Burst runs 1.18–3.73 MPa across 3–31.75 mm ID and is quoted per section, because a 3 mm bore and a 31.75 mm bore do not share a figure. Working pressure is that number divided by the safety factor the line works to: 4:1 for general duty, 3:1 where a shorter service interval is accepted. Any single working-pressure figure for the whole range would be wrong for most orders.

4

Choose the bore and the wall

Take the smallest bore that carries the flow. A larger bore adds retained liquid and wetted wall without adding headroom, and on a dosing or steam line that shows up as slower response. Wall follows the pressure and the bend radius, and it is set per section. Watch the units: 1/4 inch is 6.35 mm, not 6 mm — the barb decides the bore, not the catalogue.

5

Agree the ends, the clamp and the route

Barbed, flanged, threaded (NPT, BSP, JIC) or sanitary clamp. The non-silicone fittings are integrated through partner manufacturers; the silicone part is made here. Match the barb OD to the hose ID rather than stretching the tube over a larger barb. Torque comes from the clamp maker, because over-clamping crushes braid filaments and compresses the wall for good. Bend radius comes from the size table for that section, not from a multiple of the OD.

6

Know what ships with it

Material documents travel with the order: the compound is documented to FDA 21 CFR 177.2600 and LFGB, with REACH and RoHS declarations. A product-level report for a unit certificate is arranged per project and quoted separately. Standard sections run 5–7 working days, stock samples leave in 3 days, and a custom construction takes 10–20 working days after approval.

Anything that is still open at this point is a question worth asking before the order, not a guess worth making after it.

Braided silicone hose FAQ

The questions that come up before an order, answered with the figure we can actually support for that section.

How much pressure does the hose take?

Burst pressure is the figure we publish, and it is quoted per section: 1.18–3.73 MPa across 3–31.75 mm ID. Working pressure is that burst figure divided by the safety factor the line works to — 4:1 for general duty, 3:1 where a shorter service interval is accepted.

What temperature range is it rated for?

−40 °C to +200 °C continuous. Steam, hot oil or hot air above that is quoted against the actual peak and cycle rather than against one number for every bore, and the peak is stated per condition.

Is it certified for food contact?

The compound is documented to FDA 21 CFR 177.2600 and LFGB, with REACH and RoHS declarations. On an inner-braid build the silicone and colour compound are documented to NSF/ANSI 51 as materials for food equipment. That is material-level documentation; a product-level report for a unit certificate is arranged per project.

What sizes can I order?

3–31.75 mm ID, with the wall set by the section, built to the drawing rather than to a fixed shelf list. Watch the units: 1/4 inch is 6.35 mm, not 6 mm — the barb on the machine decides the bore.

Can it be cleaned in place, and sterilised?

CIP and SIP with food-grade acid and chlorine-based sanitiser are routine: the compound is platinum-cured with no plasticiser, so there is nothing to leach into the line. Autoclave, gamma and EtO cycles are evaluated per project against the actual cycle rather than assumed from the material.

Can the braid be customised?

Yarn (polyester, aramid or stainless steel), braid angle and coverage are set at the winder, so the burst headroom and the texture of the outside can both be matched to the drawing. Ply and coverage are quoted per line rather than printed as one figure for the range.

What is the MOQ, and how long do samples take?

Standard sections ship in 5–7 working days and stock samples leave in 3 days; a custom construction takes 10–20 working days after approval. MOQ and any sample charge depend on the section and the braid, and both are stated on the quotation rather than as a general rule.

Do you supply assemblies with fittings?

Cut length or coil with bare ends, or assembled with barbed, flanged, threaded (NPT, BSP, JIC) or sanitary-clamp fittings integrated through partner manufacturers. The silicone part is made here; the metal is not.

Braided silicone hose, quoted against the line it runs on

Inner braid, external braid or mesh, from 3 to 31.75 mm ID, with the burst figure quoted per section rather than for the whole range.

Send the machine, the line position and the pressure behaviour — the first answer comes back as a construction, not a price.
